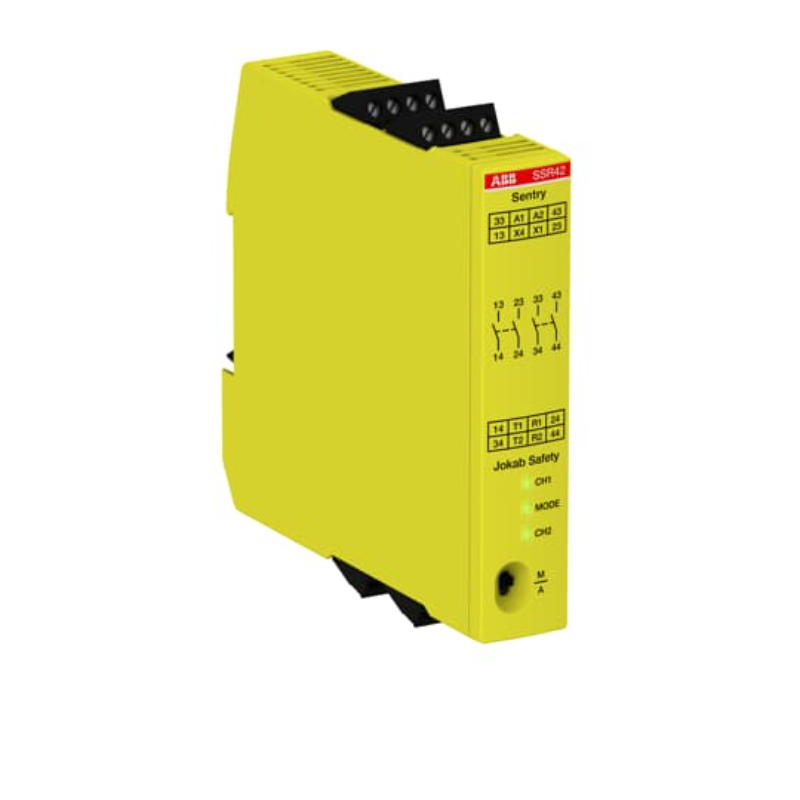

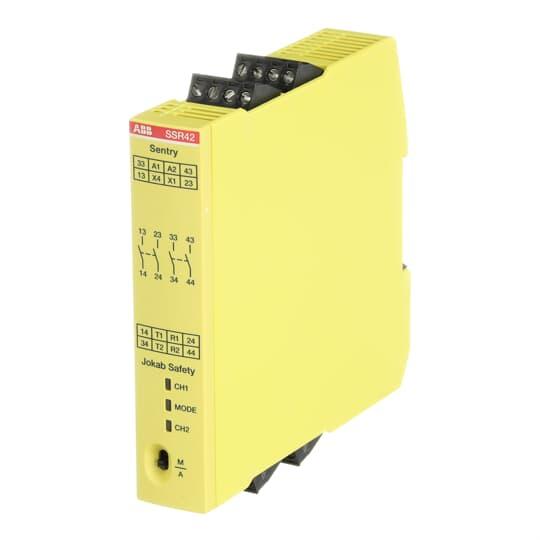

ABB SSR42 Safety Relay 24VDC 2NO+2NC

Product Code: SSR42

  • Operates at 24 VDC with 3 A current
  • Features 2NO+2NC contact config
  • Compact DIN Rail mounting design
  • IP20 protection rating
  • Complies with ISO 13849 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Relay
Brand ABB
Contact Configuration 2NO+2NC
Degree of Protection IP20
Height 120 mm
Length 120 mm
Mounting Type DIN Rail
Rated Current 3 A
Rated Voltage 24 VDC
Standards and Approvals IS0 13849
Weight 0.207 kg
Width 22.5 mm

Description

<p>This product is designed for those who require reliable and efficient operation in industrial and commercial environments. With a rated voltage of 24 VDC and a current capacity of 3 A, it provides the necessary power handling capabilities for many applications. The contact configuration of 2NO+2NC offers versatile use, allowing you to integrate this product seamlessly into existing systems that demand both normally open and normally closed contacts.</p><p>The mounting type is DIN Rail, which ensures easy installation and compatibility with standard industrial setups. Its compact dimensions—22.5 mm in width, 120 mm in height, and an equal length—make it suitable for space-constrained environments without compromising on performance or accessibility.</p><p>With an IP20 degree of protection, this product is well-suited for indoor use where contact with solid foreign objects like fingers or tools needs to be prevented but not against moisture. This level of protection aligns with typical requirements found in controlled industrial settings.</p><p>Adhering to IS0 13849 standards demonstrates its compliance with recognized safety norms, providing you with peace of mind regarding operational safety and reliability. Weighing just 0.207 kg, it&amp;#39;s lightweight enough to handle easily during installation yet robust enough to withstand the rigors of daily use.</p><p>In summary, this product combines practical features such as dual contact configurations and standard DIN rail mounting with essential safety approvals like IS0 13849 certification. It&amp;#39;s engineered for those who need dependable performance without unnecessary complexity or bulkiness in their electrical systems.</p>
