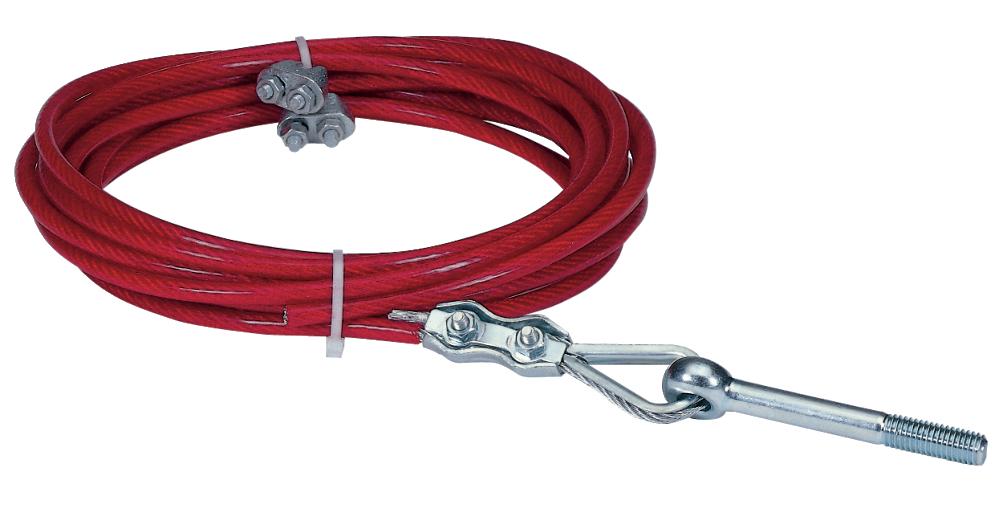

SCHMERSAL WIRE ROPE COMPLETE FIXING KIT-50M PULL-WIRE EMERGENCY STOP SWITCH 103003631

Product Code: 103003631

Ensure machine safety with the Schmersal pull-wire emergency stop system. This robust wire unit features a 50-meter long, 5 mm diameter wire encased in a durable 2 mm PVC sheath, designed for reliable E-stop functionality in industrial settings. Part of the Machine Safety category, this pull-wire E-stop solution is essential for maintaining safety standards and operational integrity in demanding environments.

Technical Specifications

eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-24-02
ETIM 6.0 EC002544
ETIM 7.0 EC002593
Gross Weight (g) 337
Minimum Ambient Temperature (°C) -25
Net Weight (g) 341
Sensor Height (mm) 35
Sensor Length (mm) 30
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Brand SCHMERSAL
Degree of Protection IP66 / IP67
EAN 4030660000000
Enclosure Material Plastic
Maximum Ambient Temperature (°C) 50
Minimum Mechanical Life 10000000 Operations
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type Screw terminals M20 x 1.5
