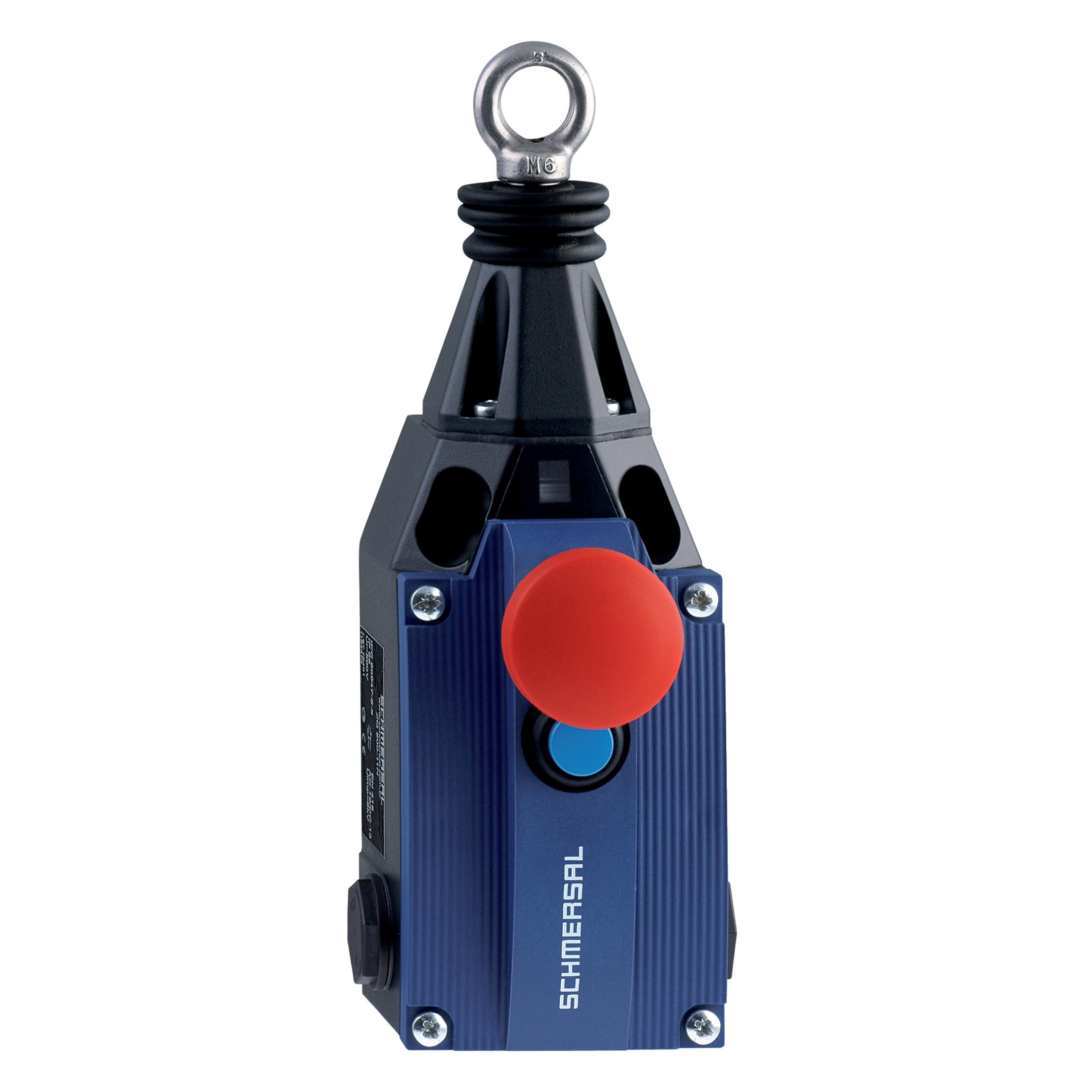

Schmersal 101184476 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184476

  • Rated current of 6 A for efficient performance
  • Durable with 1,000,000 mechanical cycles
  • Robust die-cast zinc metal housing
  • IP65 protection against dust and water
  • Operates in -25 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pull-Wire Emergency Stop Switch
Brand SCHMERSAL
Series ZQ
Action Snap Action
Cable Length 75 m
Contact Material Silver
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Humidity 95%
Mechanical Life 1000000 Cycle
Operational Temperature -25 to 70 deg C
Rated Current 6 A
Rated Insulation Voltage 500 V
Sensor Size 97.2 mm L x 71.5 mm W x 220.3 mm H
Standards and Approvals EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN ISO 13849-1

Description

<p>This robust industrial product is designed to meet demanding technical requirements, offering reliability and performance for commercial applications. With a rated current of 6 A, it ensures efficient operation across various systems. The mechanical life of this product extends up to an impressive 1,000,000 cycles, highlighting its durability and suitability for long-term use in rigorous environments.</p><p>The device features a substantial cable length of 75 meters, providing ample flexibility for installation in diverse settings. Constructed with a metal housing made from die-cast zinc, it promises strength and resilience against physical impacts. This material choice also contributes to its high degree of protection rated at IP65, safeguarding the internal components from dust ingress and low-pressure water jets from any direction.</p><p>Designed to operate within a wide temperature range from -25&amp;#176;C to 70&amp;#176;C, this product can withstand extreme conditions while maintaining optimal functionality. Its snap action mechanism ensures quick and precise responses essential in automated processes.</p><p>The contact material employed is silver, known for excellent conductivity and resistance to corrosion—ideal characteristics for maintaining consistent electrical connections over time. Additionally, the rated insulation voltage stands at 500 V, supporting safe operation under high-voltage conditions.</p><p>Measuring 97.2 mm in length by 71.5 mm in width by 220.3 mm in height, the sensor size is compact yet substantial enough to integrate seamlessly into existing systems without requiring significant modifications.</p><p>Meeting stringent standards such as EN ISO 13850, EN IEC 60947-5-1 &amp;amp; -5-5, and EN ISO 13849-1 underscores its compliance with international safety regulations—a critical factor when selecting components for industrial automation projects.</p><p>With humidity tolerance up to 95%, this device remains reliable even in moisture-prone environments common within many industrial facilities.</p><p>In summary, this product&amp;#39;s combination of durability through extensive mechanical life cycles; robust construction materials; comprehensive environmental protections; and adherence to international standards makes it an ideal choice for professionals seeking dependable solutions that align with their technical specifications.</p>
