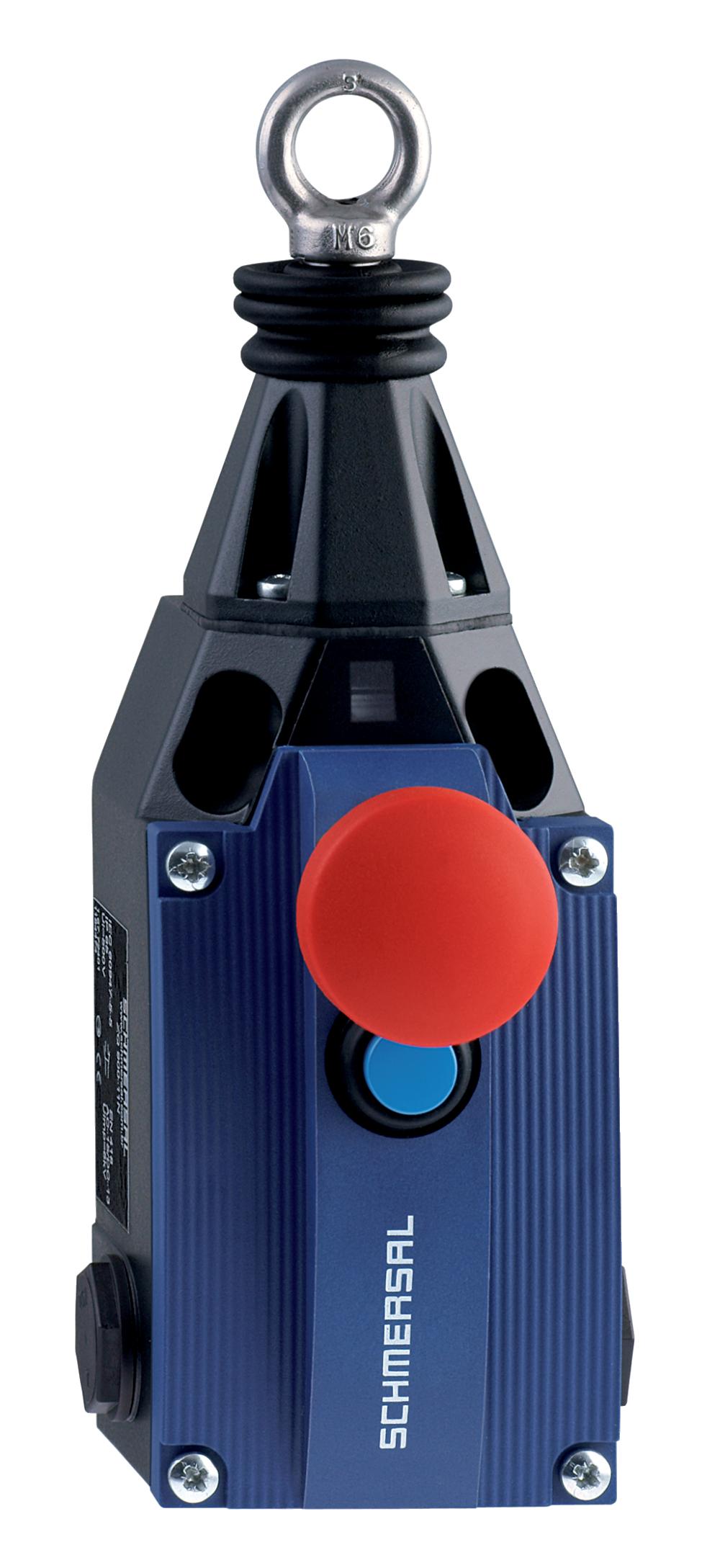

Schmersal 101184477 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184477

  • Rated current of 6 A
  • Durable metal, die-cast zinc housing
  • High protection with IP65 rating
  • Operates in -25 to 70°C temperatures
  • Complies with EN ISO and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pull-Wire Emergency Stop Switch
Brand SCHMERSAL
Series ZQ
Action Snap Action
Cable Length 75 m
Contact Material Silver
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Humidity 95%
Mechanical Life 1000000 Cycle
Operational Temperature -25 to 70 deg C
Rated Current 6 A
Rated Insulation Voltage 500 V
Sensor Size 97.2 mm L x 71.5 mm W x 220.3 mm H
Standards and Approvals EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN ISO 13849-1

Description

<p>This industrial-grade product is engineered to meet the rigorous demands of commercial applications, offering a robust solution for your operational needs. With a rated current of 6 A, it ensures reliable performance in various electrical systems. The housing made from die-cast zinc metal provides exceptional durability and resistance to environmental factors, making it suitable for harsh conditions.</p><p>The device boasts an impressive mechanical life of one million cycles, underscoring its longevity and reliability in continuous operation scenarios. Its IP65 degree of protection guarantees that it is dust-tight and protected against water jets, ensuring optimal functionality even in challenging environments with high humidity levels up to 95%.</p><p>Designed for versatility, the product operates efficiently within a temperature range of -25&amp;#176;C to 70&amp;#176;C. This wide operational temperature range makes it ideal for diverse settings, from cold storage facilities to heated industrial spaces.</p><p>The snap action mechanism ensures quick response times and precise operation, which is crucial for processes requiring exact control. With a contact material composed of silver, users can expect excellent conductivity and minimal resistance losses.</p><p>Conforming to several standards such as EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, and EN ISO 13849-1, this product meets international safety and quality benchmarks. These certifications provide peace of mind regarding compliance with industry regulations.</p><p>Measuring at a sensor size of 97.2 mm length x 71.5 mm width x 220.3 mm height along with a substantial cable length of 75 meters allows flexibility in installation across different setups without compromising on connectivity or performance.</p><p>Rated insulation voltage stands at an impressive 500 V which adds another layer of safety by preventing accidental electric shocks during maintenance or operation phases.</p><p>In summary this product combines robust construction advanced features compliance with international standards making it an indispensable component in any sophisticated electrical setup looking for reliability efficiency durability all wrapped into one comprehensive package</p>
