Actuating Element	Rod Lever
Lever Material	Metal Film
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-30
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	4
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Rated Short-circuit Current (A)	1000
Rod Material	Plastic
Sensor Length (mm)	52
Sensor Width (mm)	40.5
Switching Element	NO Contact, NC Contact
Switching Frequency	5000/h
Switching Principle	Snap Action
Switchover Time (ms)	2ms (Maximum)
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	10
Utilisation Category	DC-13
Brand	SCHMERSAL
Actuator Type	D - According to EN 50041
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	30000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards	EN ISO 13849-1
Standards and Approvals	EN ISO 13849-1

Position Switches & Sensors

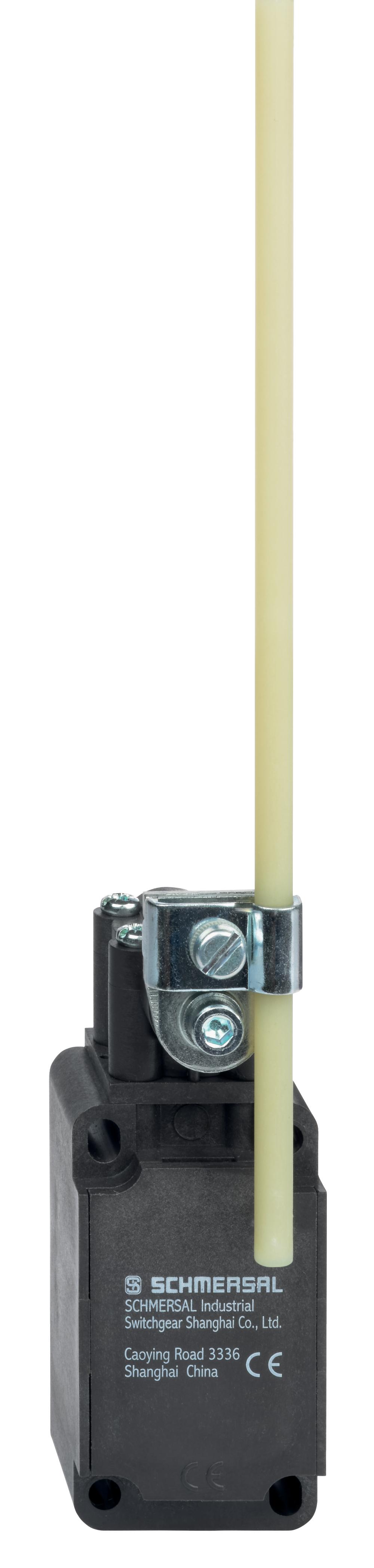

SCHMERSAL POSITION SWITCH, 1 SAFETY CONTACTS 151157105
