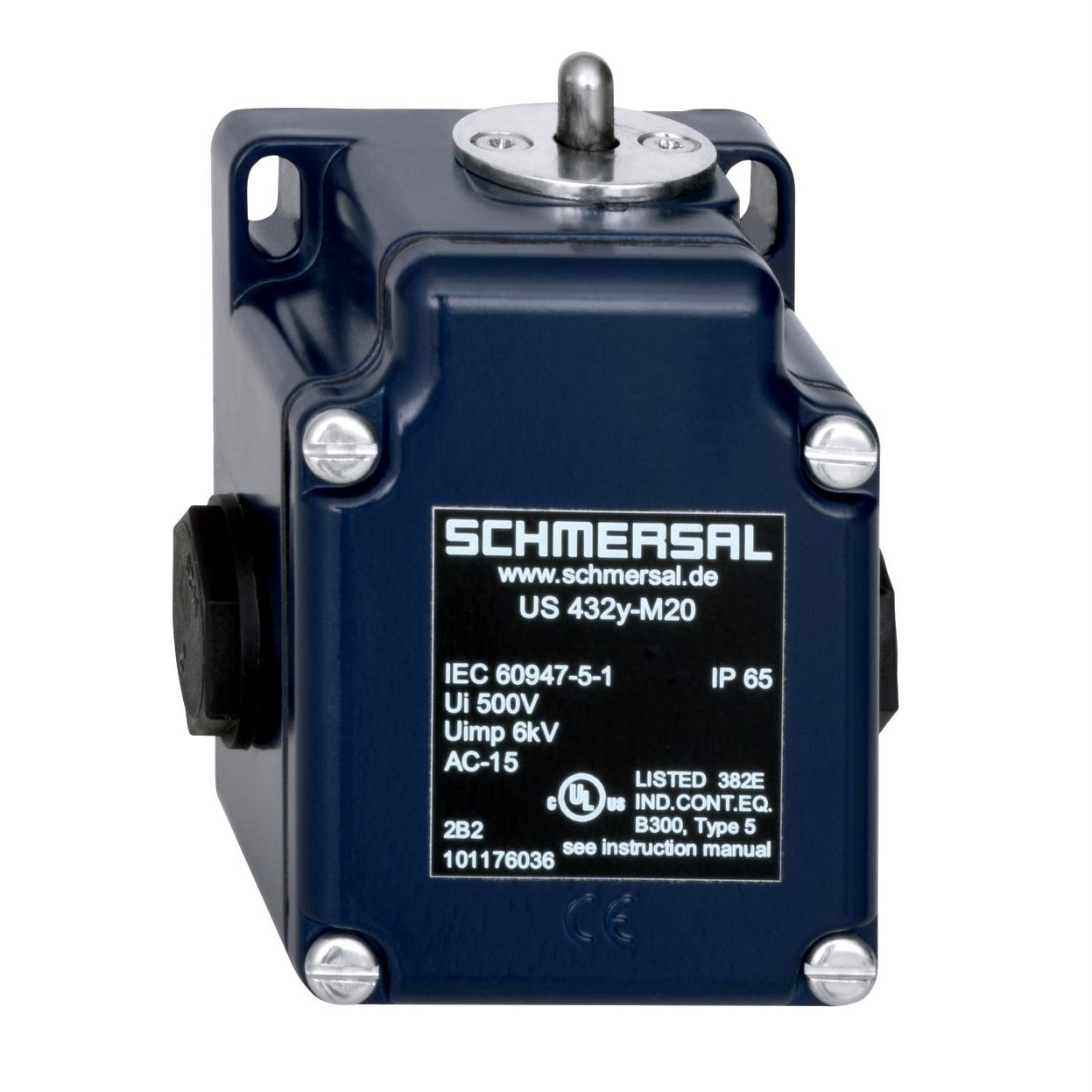

Schmersal 101176036 Position Switch Plunger NC Die Cast Light Alloy Silver Contact

Product Code: 101176036

  • Rated for 16 A current
  • Durable die cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Plunger actuator with slow action switching
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Element Plunger
Actuating Speed 1 mm/min
Actuator Type Plunger
Cable Cross Section 1.5 sq-mm
Contact Configuration NC
Contact Material Silver
Contact Opening (2) 1.5 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Die Cast Light Alloy
Mechanical Life 10000000 Operations
Rated Current 16 A
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>When it comes to industrial and commercial applications, selecting the right components is crucial for ensuring reliability and performance. This particular product offers a robust solution designed to meet demanding operational requirements.</p><p>Rated at 16 A, this device is built with a die-cast light alloy housing, which not only provides strength but also ensures durability in various environmental conditions. Its IP65 protection rating means it is dust-tight and can withstand low-pressure water jets from any direction, making it suitable for both indoor and outdoor use.</p><p>Compliant with EN IEC 60947-5-1 standards, this device meets stringent international safety and performance criteria. The contact configuration features a normally closed (NC) setup, ideal for safety circuits where maintaining continuity until actuated is critical.</p><p>The switching mechanism employs slow action technology, providing precise control over operations. This feature minimizes wear on the contacts, extending the lifespan of the switch even in frequent cycling scenarios. The actuator type is a plunger design that requires an actuating speed of just 1 mm/minute—ensuring responsiveness without compromising on accuracy or control.</p><p>Constructed with silver contacts, this product guarantees excellent conductivity and resistance to corrosion—a vital attribute for maintaining consistent electrical performance over time. With a fuse rating of 16 A gG D-Fuse, it integrates seamlessly into existing electrical systems while offering reliable protection against overloads.</p><p>For ease of installation, the cable cross-section accommodates up to 1.5 square millimeters—standard sizing that simplifies integration into diverse setups without requiring specialized connectors or tools. The contact opening measures two separate points at 1.5 mm each—allowing for secure connections that resist loosening under vibration or mechanical stress.</p><p>Remarkably engineered for longevity, this component boasts an impressive mechanical life of up to ten million operations—a testament to its quality manufacturing and suitability for high-duty cycles in industrial environments.</p><p>In summary, whether you&amp;#39;re upgrading current setups or specifying components for new installations, this product stands out as a dependable choice backed by rigorous standards compliance and practical design features tailored for real-world applications.</p>
