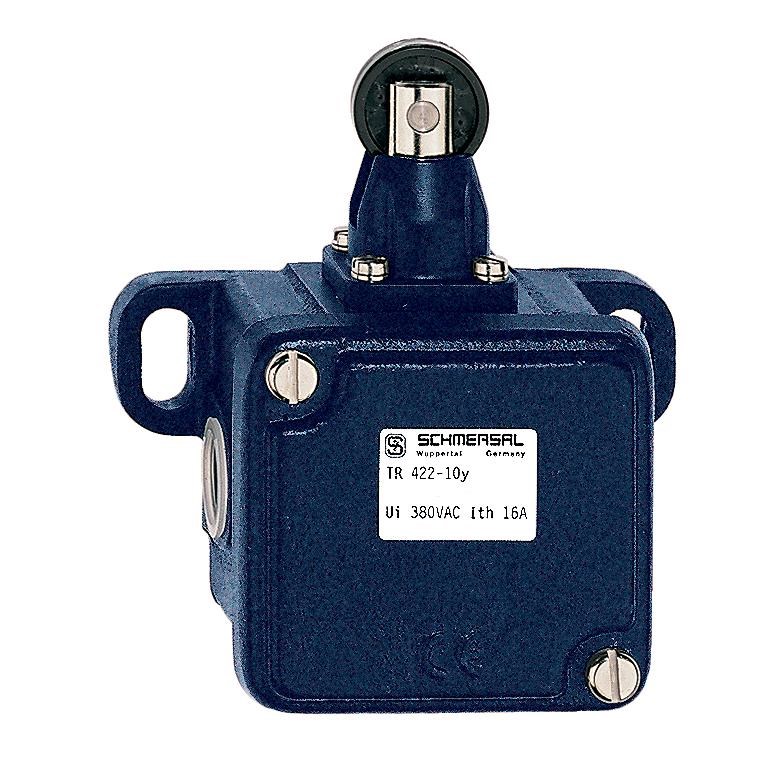

Schmersal 101175521 Position Switch Roller Plunger 1NO Grey Cast Iron Galvanized Silver Contact

Product Code: 101175521

  • Rated for 400 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Roller plunger actuator for precision control
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Element Roller Plunger
Actuating Speed 1 mm/min
Actuator Type Roller Plunger
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO
Contact Material Silver
Contact Opening (2) 6 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 10000000 Operations
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>When it comes to selecting a reliable switch for industrial and commercial applications, understanding the technical specifications is crucial. This product, with its robust design and precise engineering, is tailored to meet stringent operational demands.</p><p>Operating at a rated voltage of 400 VAC and a current of 4 A, this switch is ideal for various electrical setups. The housing material, crafted from grey cast iron and galvanized for added durability, ensures long-term performance even in challenging environments. With an IP65 degree of protection, the switch offers excellent resistance against dust and water ingress, making it suitable for outdoor or harsh indoor settings.</p><p>Compliance with EN IEC 60947-5-1 standards underscores its quality and reliability in industrial applications. The contact configuration features one normally open (1NO) contact made from silver, known for its excellent conductivity and corrosion resistance. This component is designed with slow action switching type which provides controlled operation essential for sensitive equipment.</p><p>The actuator type includes a roller plunger that allows smooth actuation with an actuating speed of just 1 mm/min—ideal for applications requiring precision. Additionally, the mechanical life extends up to 10 million operations ensuring longevity and reduced maintenance needs over time.</p><p>Safety considerations are addressed with a fuse rating of 16 A gG D-Fuse providing protection against overcurrent scenarios. The cable cross-section accommodates wires up to 1.5 sq-mm supporting adequate current flow without overheating risks.</p><p>For ease of integration into existing systems or new installations, the contact opening measures two slots at 6 mm each allowing straightforward connection procedures.</p><p>Overall this product stands out as a dependable choice combining rugged construction high-performance standards adherence efficient switching capabilities alongside comprehensive safety features—all vital factors when determining suitability within your technical requirements.</p>
