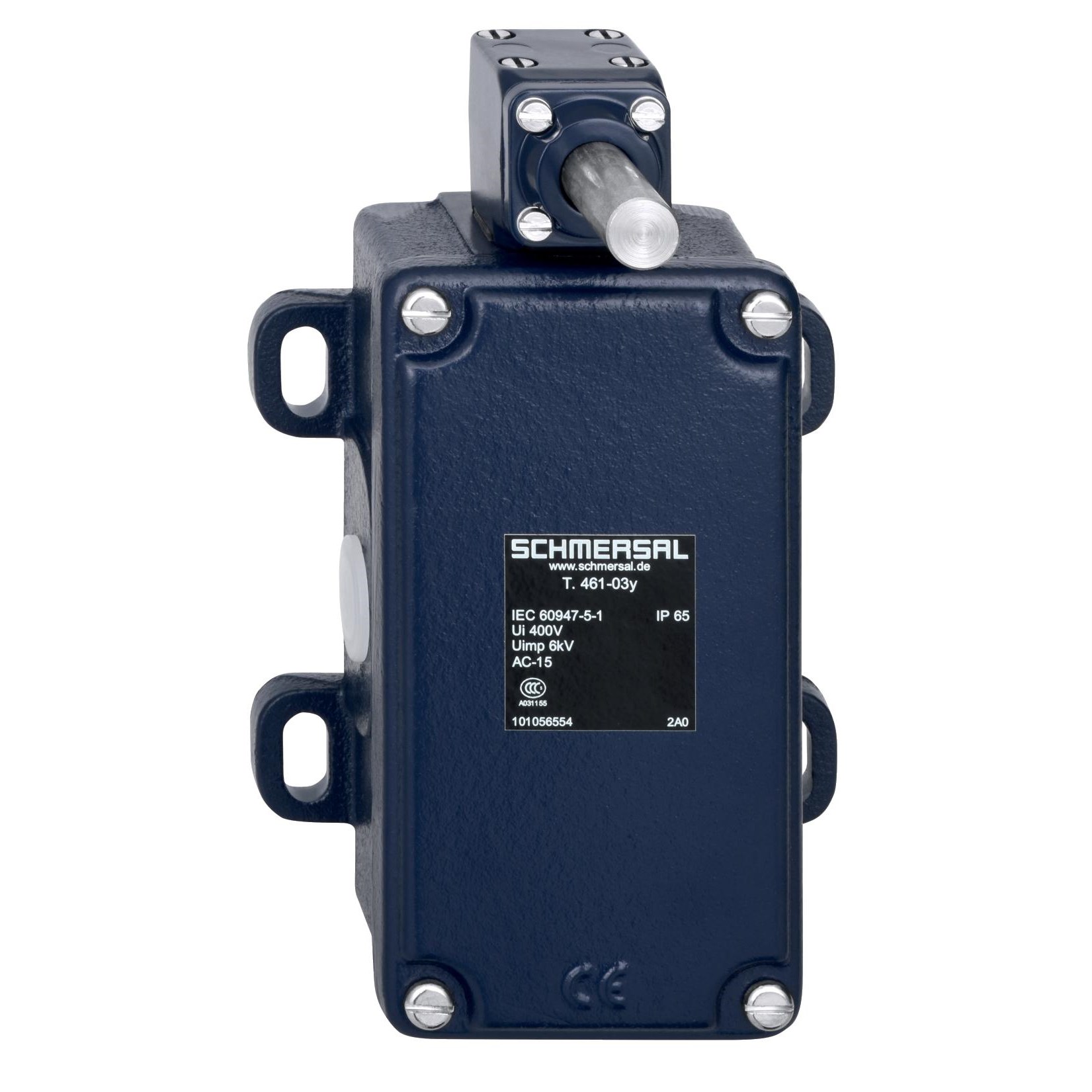

Schmersal 101059160 Medium-Duty Position Switch Offset Roller Lever NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059160

  • Rated for 400 VAC, 4 A operation
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Offset roller lever actuator design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Element Offset Roller Lever
Actuating Speed 1 mm/min
Actuator Type Offset Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration NC
Contact Material Silver
Contact Opening (2) 6 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 10000000 Operations
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>When considering a robust and reliable switching solution for industrial applications, this particular device stands out with its impressive technical specifications. Designed to meet demanding conditions, it offers both durability and efficiency, making it an ideal choice for professionals in the electrical engineering and automation sectors.</p><p>The switch operates at a rated voltage of 400 VAC and supports a current of up to 4 A. This makes it suitable for various industrial environments where consistent performance is crucial. Its housing is crafted from grey cast iron and galvanized material, ensuring exceptional durability and resistance to harsh conditions.</p><p>With an IP65 degree of protection, this switch is well-suited for environments where dust ingress or water spray might be a concern. It complies with the EN/IEC 60947-5-1 standards, guaranteeing quality and safety in line with international requirements.</p><p>The contact configuration features normally closed (NC) contacts made from silver, known for excellent conductivity and corrosion resistance. The slow action switching type ensures precise control over operations—a critical factor when timing is essential in your application.</p><p>Equipped with an offset roller lever actuator type, this device accommodates actuating speeds as low as 1 mm/min. This feature enables accurate operation even under minimal movement scenarios. The contact opening measures two instances of 6 mm each, providing ample space for secure connections.</p><p>For added safety during operation interruptions or faults, the switch includes a fuse rating of 16 A gG D-Fuse. It also supports cable cross sections up to 1.5 sq-mm—offering flexibility during installation while maintaining optimal electrical performance.</p><p>One notable aspect is its mechanical life span; designed to endure up to ten million operations—this longevity minimizes downtime due to maintenance or replacements over time significantly enhancing operational efficiency within your setup.</p><p>Overall this product combines reliability functionality compliance all wrapped into one efficient package allowing you peace mind knowing that every detail has been considered carefully crafted deliver top-notch results without compromise on quality standards expectations set by industry professionals today!</p>
