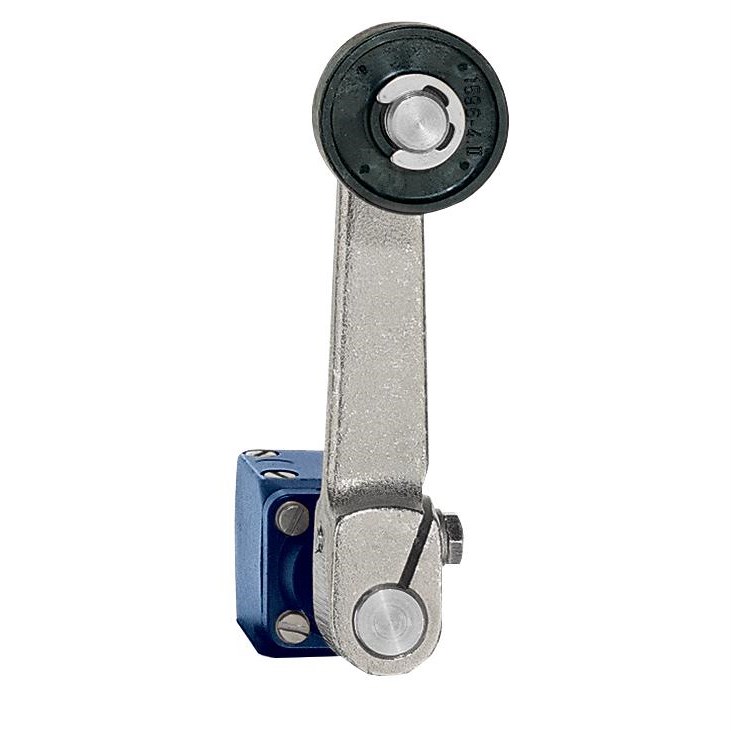

Schmersal 101059607 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059607

  • Rated for 400 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust/water
  • Features 1NO+1NC slow action contacts
  • Roller lever actuator with silver contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Element Roller Lever
Actuating Speed 1 mm/min
Actuator Type Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 6 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 10000000 Operations
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>This robust industrial switch is designed to meet the demanding needs of commercial and industrial applications, offering reliable performance with its solid construction and precise engineering. Featuring a rated voltage of 400 VAC and a rated current of 4 A, this switch is well-suited for various power applications.</p><p>Constructed from durable grey cast iron with galvanization, it ensures longevity and resilience in harsh environments. Its IP65 degree of protection guarantees excellent resistance against dust and water ingress, making it ideal for outdoor or challenging conditions where protection from elements is crucial.</p><p>Compliant with EN IEC 60947-5-1 standards, this switch meets essential safety and performance criteria, providing peace of mind to engineers and technicians who prioritize adherence to international standards. The contact configuration comprises one normally open (NO) and one normally closed (NC) contact, allowing for versatile integration into control systems.</p><p>The slow action switching type enhances precision in operations that require careful control over actuation speed. With an actuator type featuring a roller lever, the switch provides smooth mechanical movement suitable for applications requiring consistent actuation force. It operates efficiently at an actuating speed as low as 1 mm/min.</p><p>Silver contacts ensure optimal conductivity and reliability over time by minimizing resistance-related losses during operation. This product also includes a fuse rating of 16 A gG D-Fuse for added circuit protection against overloads.</p><p>Supporting a cable cross-section up to 1.5 sq-mm makes installation straightforward while maintaining electrical integrity across connections. The dual contact opening mechanism features two openings each measuring 6 mm, facilitating secure wiring configurations tailored to specific application requirements.</p><p>With an impressive mechanical life expectancy of up to ten million operations, this switch stands out as a durable solution capable of handling extensive usage without compromising performance or reliability over time—an essential feature for industries where downtime can be costly.</p><p>In summary, this switch offers exceptional durability combined with high-performance specifications suitable for demanding industrial settings where reliability cannot be compromised.</p>
