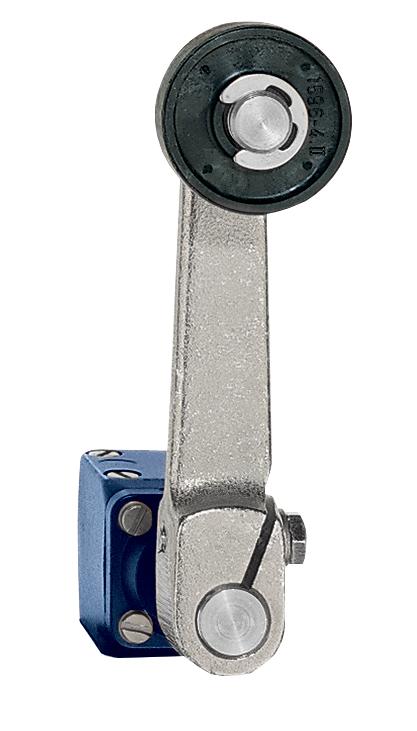

SCHMERSAL TD 452-02YMEDIUM-DUTY POSITION SWITCH 101059573
Zoom
SCHMERSAL TD 452-02YMEDIUM-DUTY POSITION SWITCH 101059573
Product Code: 101059573
Technical Specifications
Actuating Angle
30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element
Roller Lever
Castor Diameter (mm)
36
Castor Material
Plastic
Castor Width (mm)
9
Contact Opening (mm)
2 x 6
Maximum Actuating Speed (m/s)
3
Maximum Fuse Rating
16 A gG D-fuse
Minimum Actuating Speed (mm/min)
1
Minimum Ambient Temperature (°C)
-30
Rated Operational Current AC-15 (A)
4
Rated Operational Voltage AC-15 (V)
400V AC
Sensor Height (mm)
265
Sensor Length (mm)
64
Sensor Width (mm)
118
Switching Element
Opener (NC)
Switching Principle
Slow Action
Termination
Screw Terminals M20 x 1.5
Thermal Test Current (A)
16
Utilisation Category
AC-15
Brand
SCHMERSAL
Contact Material
Silver
Degree of Protection
IP65
Enclosure Coating Material
Painted
Housing Material
Grey Cast Iron, Galvanised
Maximum Ambient Temperature (°C)
90
Maximum Cable Cross Section (mm²)
2.5
Minimum Cable Cross Section (mm²)
1.5
Minimum Mechanical Life
10000000 Operations
No. of Normally-closed Contacts
2
Rated Impulse Withstand Voltage (kV)
6
Rated Insulation Voltage (V)
400
Standards and Approvals
EN IEC 60947-5-1
