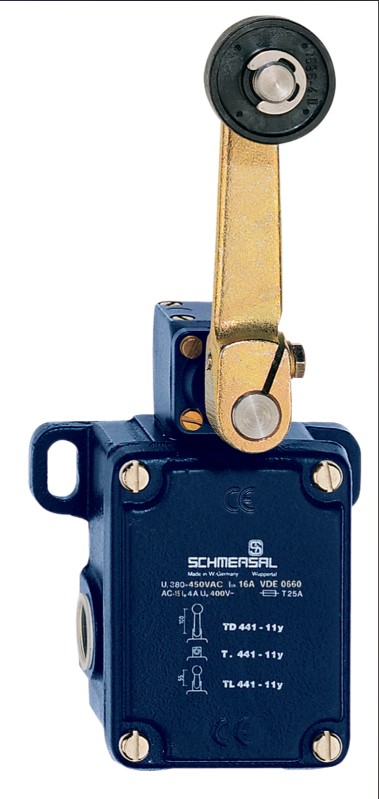

SCHMERSAL MEDIUM-DUTY POSITION SWITCH TD 441-11Y-T-1801 101105213
Zoom
SCHMERSAL MEDIUM-DUTY POSITION SWITCH TD 441-11Y-T-1801 101105213
Product Code: 101105213
Technical Specifications
Actuating Angle
30 ° from Left of Switch Axis 30 ° from Right of Switch Axis
Contact Opening (mm)
2 x 2.5
Maximum Actuating Speed (m/s)
3
Minimum Actuating Speed (mm/min)
1
Sensor Height (mm)
192
Sensor Length (mm)
63
Sensor Width (mm)
106
Switching Element
NO Contact, NC Contact
Switching Principle
Slow Action
Termination
Screw Terminals M20 x 1.5
Thermal Test Current (A)
16
Brand
SCHMERSAL
Actuator Type
Roller lever
Ambient Temperature Range (°C)
-40 °C to +200 °C
Contact Material
Silver
Degree of Protection
IP65
Enclosure Material
Grey Cast Iron, Galvanised
Maximum Switching Current (A)
4
Maximum Switching Voltage AC (V)
250
Minimum Mechanical Life
5,000,000 Operations
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage AC (V)
250
