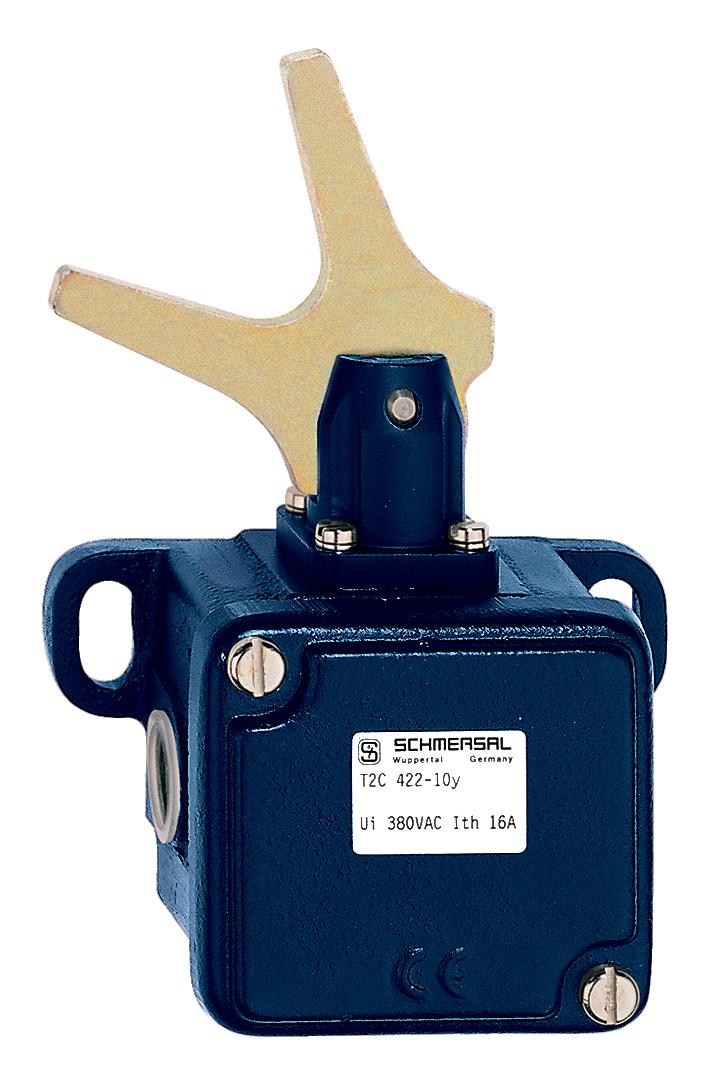

Schmersal 101059651 Medium-Duty Position Switch Fork Roller Lever NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059651

  • Rated for 400 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Features a fork roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Element Fork Lever
Actuating Speed 1 mm/min
Actuator Type Fork Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration NC
Contact Material Silver
Contact Opening (2) 6 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 10000000 Operations
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>This robust industrial switch is engineered for reliability and precision, making it a solid choice for various applications in the automation and building sectors. Built to withstand demanding environments, this switch features a housing made from grey cast iron with a galvanized finish, ensuring durability and resistance to wear.</p><p>Operating at a rated voltage of 400 VAC and carrying a rated current of 4 A, this switch is suitable for medium-duty tasks. Its IP65 degree of protection certifies that it is dust-tight and protected against water jets, which makes it ideal for use in harsh conditions where moisture or dust may be present.</p><p>The switch complies with EN IEC 60947-5-1 standards, guaranteeing safety and performance in electrical equipment. It features an NC (normally closed) contact configuration combined with slow action switching type, providing reliable operation by reducing the risk of accidental activation or deactivation.</p><p>A fork roller lever actuator allows precise control with an actuating speed as low as 1 mm/min. This design ensures smooth engagement even at minimal speeds while maintaining accuracy in operations. The contacts are crafted from silver, enhancing conductivity and longevity under repeated use.</p><p>For added safety, the device accommodates a fuse rating of 16 A gG D-Fuse. This feature helps protect your circuit by breaking the connection if overloads occur beyond its capacity. The cable cross-section measures 1.5 sq-mm, supporting efficient electrical flow without unnecessary resistance or overheating.</p><p>Contact openings are set at two points measuring 6 mm each to facilitate straightforward installation and maintenance procedures while optimizing connectivity options within your system setup.</p><p>With an impressive mechanical life span reaching up to ten million operations, this product promises long-term service without frequent replacements or repairs required—making it both cost-effective over time as well as dependable throughout its lifecycle in any given application scenario where consistent performance matters most!</p>
