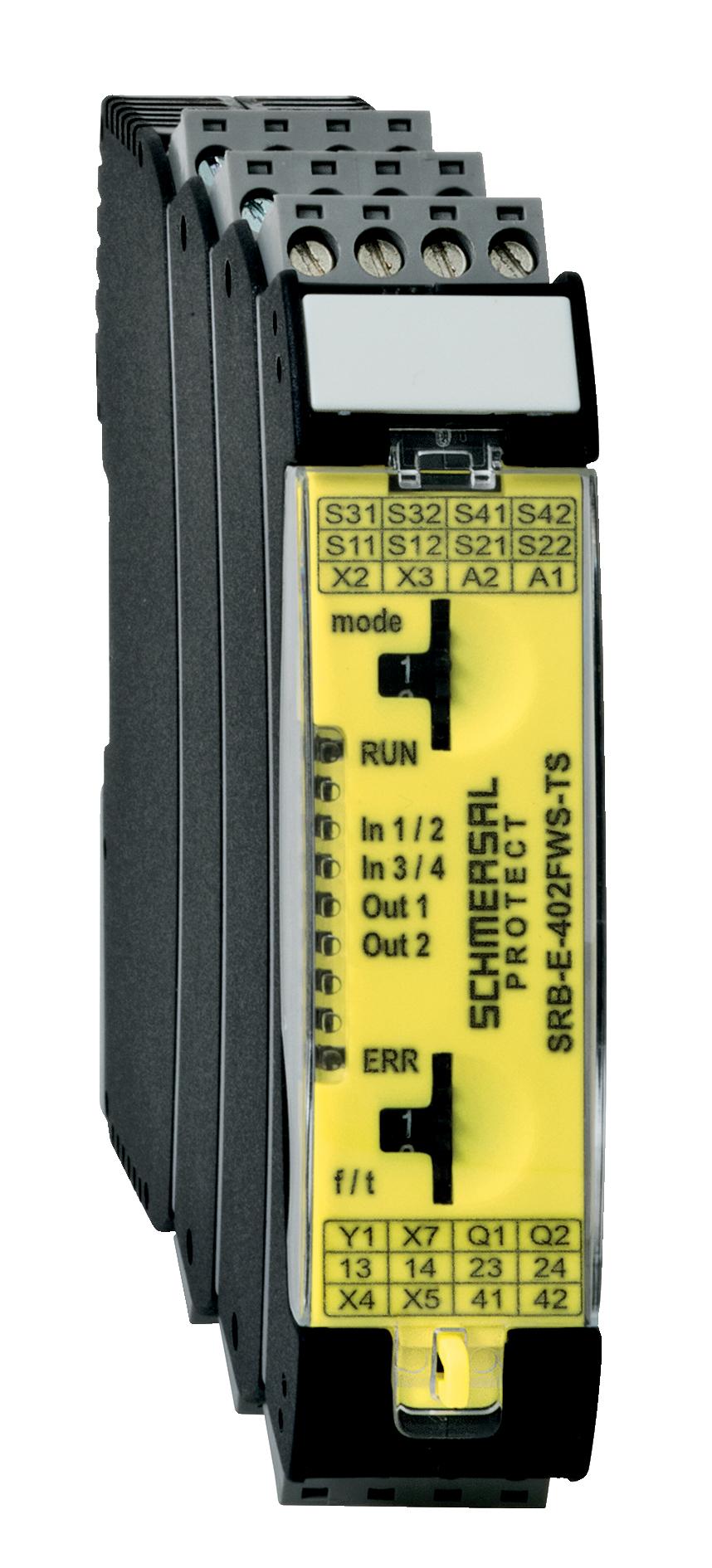

Conduction Resistance (O) |
40 |
|
Contact Resistance (O) |
0.1 |
|
Maximum Leakage Current (mA) |
1mA (Safety Digital Outputs) |
|
Maximum Rated Control Voltage DC (V) |
28.8 |
|
Maximum Storage Temperature (°C) |
85 |
|
Maximum Switching Capacity (A) |
1A (Auxiliary Contacts), 6A (Safe Relay Outputs) |
|
Maximum Switching Capacity AC (V) |
250V (Safe Relay Outputs) |
|
Maximum Switching Capacity DC (V) |
24V (Auxiliary Contacts) |
|
Maximum Switching Frequency (Hz) |
0.3 |
|
Maximum Voltage Drop (V) |
0.5 |
|
Minimum Ambient Temperature (°C) |
-25 |
|
Minimum Rated Control Voltage DC (V) |
19.2 |
|
Minimum Storage Temperature (°C) |
-40 |
|
Minimum Switching Capacity (mA) |
10mA (Safe Relay Outputs) |
|
Minimum Switching Capacity DC (V) |
10V (Safe Relay Outputs) |
|
No. of Auxiliary Contacts |
1 |
|
No. of Inputs |
4 for NC, 2 for NO |
|
No. of LEDs |
6 |
|
No. of Outputs |
2 (Fail-safe Digital Output) |
|
No. of Safety Contacts |
2 |
|
No. of Signalling Outputs |
1 |
|
Rated Operational Current (mA) |
150 |
|
Rated Operational Current AC-15 (A) |
4A (Safe Relay Outputs) |
|
Rated Operational Current DC-12 (A) |
0.1A (Digital Output) |
|
Rated Operational Current DC-13 (A) |
2A (Safety Digital Outputs), 4A (Safe Relay Outputs) |
|
Rated Operational Voltage AC-15 (V) |
230V (Safe Relay Outputs) |
|
Rated Operational Voltage DC-12 (V) |
24V (Digital Output) |
|
Rated Operational Voltage DC-13 (V) |
24V (Safety Relay Outputs), 24V (Safety Digital Outputs) |
|
Resistance to Shock (g/ms) |
30g / 11ms |
|
Resistance to Vibrations |
10 ... 55Hz, Amplitude 0.35mm |
|
Termination |
Screw Connection, Plug-in |
|
Voltage Type |
DC |
|
Brand |
SCHMERSAL |
|
Contact Material |
Ag-Ni, Self-cleaning, Positive Drive |
|
Degree of Protection |
IP40, Clips - IP20 |
|
Depth (mm) |
115 |
|
Height (mm) |
98 |
|
Housing Material |
Glass-fibre, Reinforced Thermoplastic, Ventilated |
|
Maximum Ambient Temperature (°C) |
60 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Minimum Cable Cross Section (mm²) |
0.25 |
|
Minimum Mechanical Life |
10000000 Operations |
|
Pollution Degree |
2 |
|
Power Consumption (W) |
3 |
|
Rated Insulation Voltage (V) |
250 / 50 |
|
Rated Operational Voltage (V) |
24V DC -20%/+20%, Residual Ripple Max. 10% |
|
Standards and Approvals |
EN IEC 60947-5-1, EN IEC 61508, EN 60068-2-78 |
|
Tightening Torque (Nm) |
0.5 |
|
Width (mm) |
22.5 |
