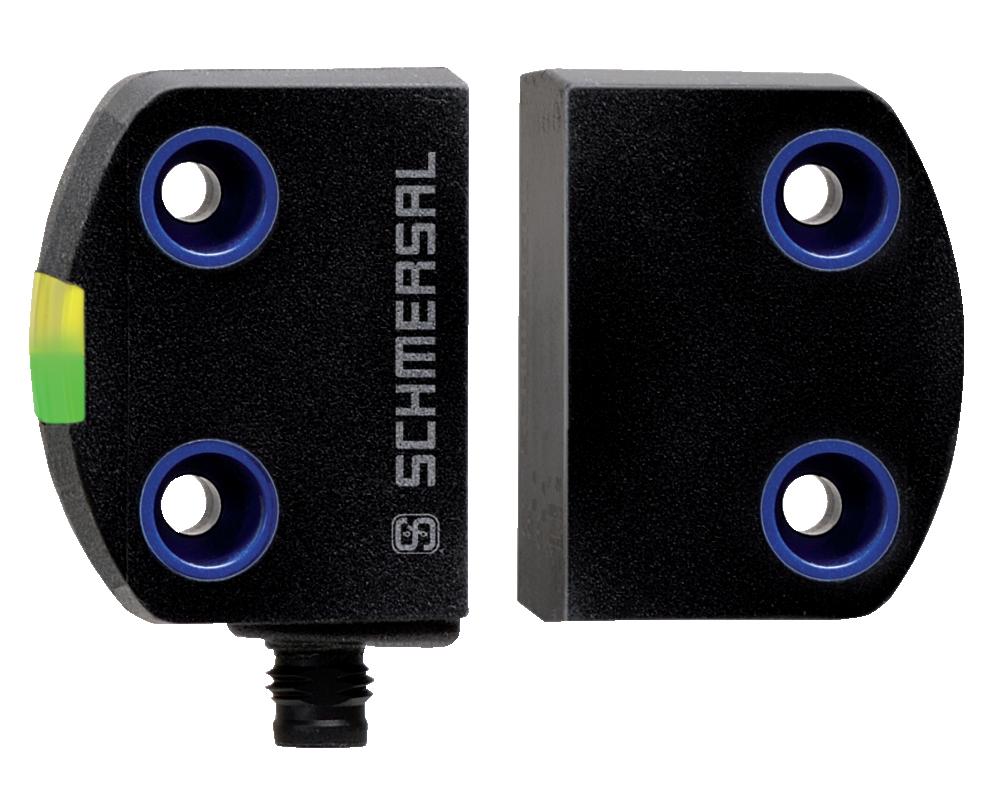

SCHMERSAL RSS260-SD-ST SAFETY SENSOR 103003605

The Schmersal RSS260 safety sensor is engineered for machine safety applications, featuring a robust thermoplastic enclosure and advanced diagnostic capabilities. This sensor includes serial diagnostics, diagnostic output, and integral system diagnostics to ensure reliable operation and easy troubleshooting. It's equipped with short circuit detection and recognition, enhancing its safety functions. This versatile unit can be cascaded with up to 31 sensors for comprehensive system coverage. It has three LEDs for status indication, one semiconductor output, and two fail-safe digital outputs. The actuating panels are accessible from the front side or laterally, with an active area that can be approached from both directions. For connectivity, it comes with an M8 terminal connector. The operating voltage is set at 24 VDC with a current of 600 mA. It falls under the utilization categories DC-12/13 at 24 VDC and 0.25 A. Designed for reliability in various industrial settings, the Schmersal RSS260 series enhances machine safety without compromising on efficiency or functionality.
