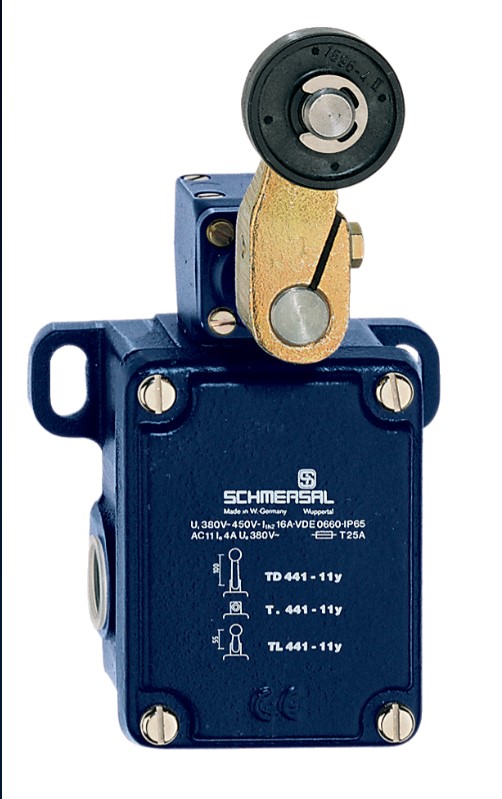

Schmersal 101095970 Medium-Duty Position Switch Roller Lever Grey Cast Iron Galvanised

Product Code: 101095970

  • Rated for 16A current handling
  • Durable galvanised grey cast iron housing
  • IP65 protection against dust and water
  • Complies with EN IEC 60947-5-1 standards
  • Roller lever actuator for precise control
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Speed 1 mm/min
Actuator Type Roller Lever
Cable Cross Section 13 AWG
Contact Material AgSn0
Contact Opening (2) 6 mm
Degree of Protection IP65
Housing Material Grey Cast Iron, Galvanised
Mechanical Life 10000000 Operations
Number of Auxiliary Contacts 1
Rated Current 16 A
Standards and Approvals EN IEC 60947-5-1
Switching Type Mechanical
Terminal Type M20 x 1.5 Screw

Description

<p>When selecting a switch for industrial or commercial applications, understanding the technical specifics is crucial. This product offers a robust solution with its impressive array of features tailored to meet demanding environments.</p><p>The switch is rated at 16 A, making it suitable for various electrical circuits where reliability and efficiency are paramount. Its housing is crafted from grey cast iron and galvanised, ensuring durability and resistance to harsh conditions. With an IP65 degree of protection, this device can withstand dust ingress and low-pressure water jets from any direction—ideal for challenging workspaces that require resilience against environmental factors.</p><p>Compliant with EN IEC 60947-5-1 standards, the switch meets rigorous international safety and performance criteria. This ensures peace of mind when integrating it into your system. It comes equipped with one auxiliary contact to facilitate additional control functions within your setup.</p><p>The mechanical switching type features a roller lever actuator, designed for precision operations at an actuating speed of 1 mm/min. The contact material used is AgSn0 (Silver Tin Oxide), known for its excellent conductivity and wear resistance—a critical consideration in high-performance settings.</p><p>For installation flexibility, the terminal type provided is M20 x 1.5 screw terminals accommodating up to 13 AWG cable cross-sections. This allows for secure connections that maintain optimal performance over time.</p><p>Engineered for longevity, this switch boasts a mechanical life expectancy of up to ten million operations—a testament to its engineering excellence and reliability in continuous use scenarios.</p><p>Overall, this product combines rugged construction with precise operation capabilities, making it an ideal choice for those seeking a dependable component in their industrial or commercial installations without compromise on quality or safety standards.</p>
