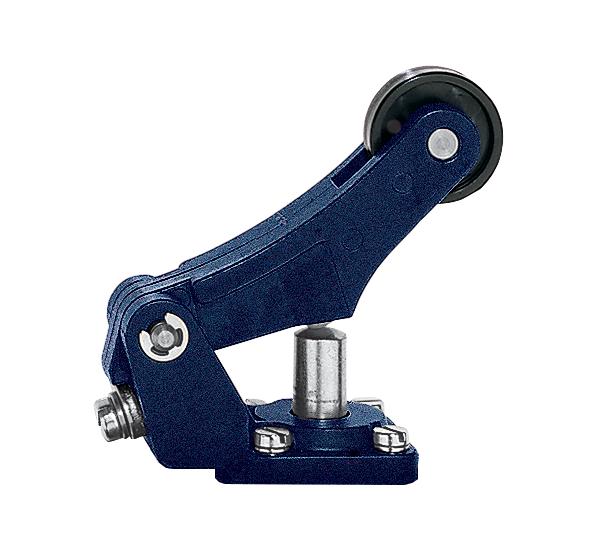

Schmersal 101059049 Medium-Duty Position Switch Offset Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059049

  • Rated for 230 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Snap action switch with offset roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Element Offset Roller Lever
Actuating Speed 1 mm/min
Actuator Type Offset Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 2.5 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 5000000 Operations
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Snap Action

Description

<p>When it comes to selecting a reliable switch for industrial and commercial applications, understanding the technical specifications is crucial. This product offers a robust solution with its comprehensive features tailored to meet demanding environments.</p><p>Operating at a rated voltage of 230 VAC and supporting a current of up to 4 A, this switch is designed for efficiency in power management. Its housing, crafted from grey cast iron and galvanized material, ensures durability while offering an IP65 degree of protection. This makes it suitable for use in environments where dust and water resistance are vital.</p><p>The switch adheres to the EN/IEC 60947-5-1 standards, providing assurance in terms of safety and performance compliance. The contact configuration includes one normally open (NO) and one normally closed (NC) contact, utilizing snap action switching type which allows for rapid response times.</p><p>The actuator features an offset roller lever design that supports an actuating speed as low as 1 mm/min. This precision is critical for applications requiring meticulous control over activation points. Constructed with silver contacts, the product promises excellent conductivity and longevity under electrical load conditions.</p><p>A significant aspect to consider is its mechanical life span of five million operations, indicating exceptional endurance in repetitive use scenarios. Additionally, the fuse rating stands at 16 A gG D-Fuse which enhances circuit protection by preventing overloads.</p><p>For installation flexibility, the device accommodates cable cross sections up to 1.5 sq-mm ensuring compatibility with various wiring setups. Moreover, each contact opens at two points measuring 2.5 mm each which aids in maintaining consistent electrical connectivity even under stress.</p><p>This combination of features positions this switch as an ideal choice for professionals seeking reliability and performance without compromise on quality or safety standards.</p>
