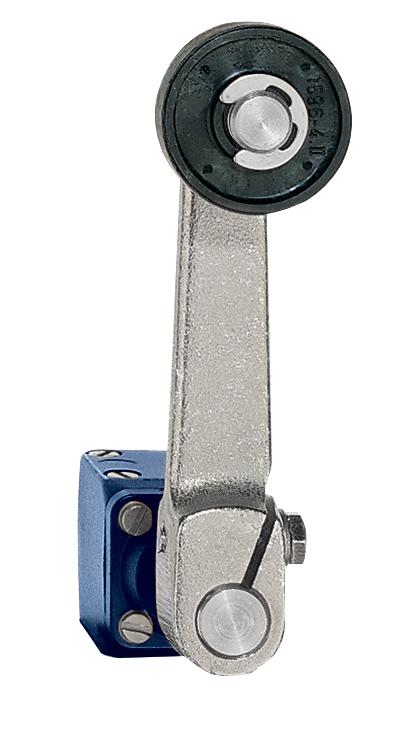

Schmersal 101059618 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059618

  • Rated for 230 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Snap action with roller lever actuator
  • Silver contacts ensure reliable performance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Medium-Duty Position Switch
Brand SCHMERSAL
Actuating Element Roller Lever
Actuating Speed 1 mm/min
Actuator Type Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 2.5 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Grey Cast Iron, Galvanized
Mechanical Life 5000000 Operations
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals ENIEC 60947-5-1
Switching Type Snap Action

Description

<p>When it comes to industrial and commercial applications, reliability and durability are key. This product is designed with these principles in mind, offering robust performance for a variety of technical needs. </p><p>Operating with a rated voltage of 230 VAC and a current capacity of 4 A, this device is well-suited for many electrical systems. Its housing is crafted from grey cast iron and galvanized materials, ensuring strength and resistance to environmental factors. With an IP65 degree of protection, the product is dust-tight and protected against water jets, making it ideal for challenging environments.</p><p>This product complies with EN IEC 60947-5-1 standards, reflecting its adherence to essential safety and operational guidelines. The contact configuration includes one normally open (NO) and one normally closed (NC) contact, providing versatile switching options suited for various control circuits.</p><p>The snap action switching type ensures rapid response times when actuated by the roller lever actuator type. This feature makes it efficient in applications requiring quick actuation at speeds as low as 1 mm/min. The contacts are made from silver material known for excellent conductivity and longevity.</p><p>For safety measures, the fuse rating stands at 16 A gG D-Fuse, adding an extra layer of protection against overcurrent situations. The cable cross-section accommodates up to 1.5 sq-mm wires, allowing sufficient capacity for standard wiring practices.</p><p>The contact opening consists of two points each measuring 2.5 mm which facilitates effective separation during operation cycles—a critical factor in maintaining circuit integrity over time.</p><p>Durability is further highlighted by its mechanical life expectancy of five million operations—providing assurance that this component will withstand frequent use without compromising performance or reliability.</p><p>In summary, this product offers a comprehensive solution tailored to meet rigorous industrial demands while adhering strictly to safety standards—all wrapped up in a durable package designed to last through countless operational cycles without faltering under pressure or harsh conditions.</p>
