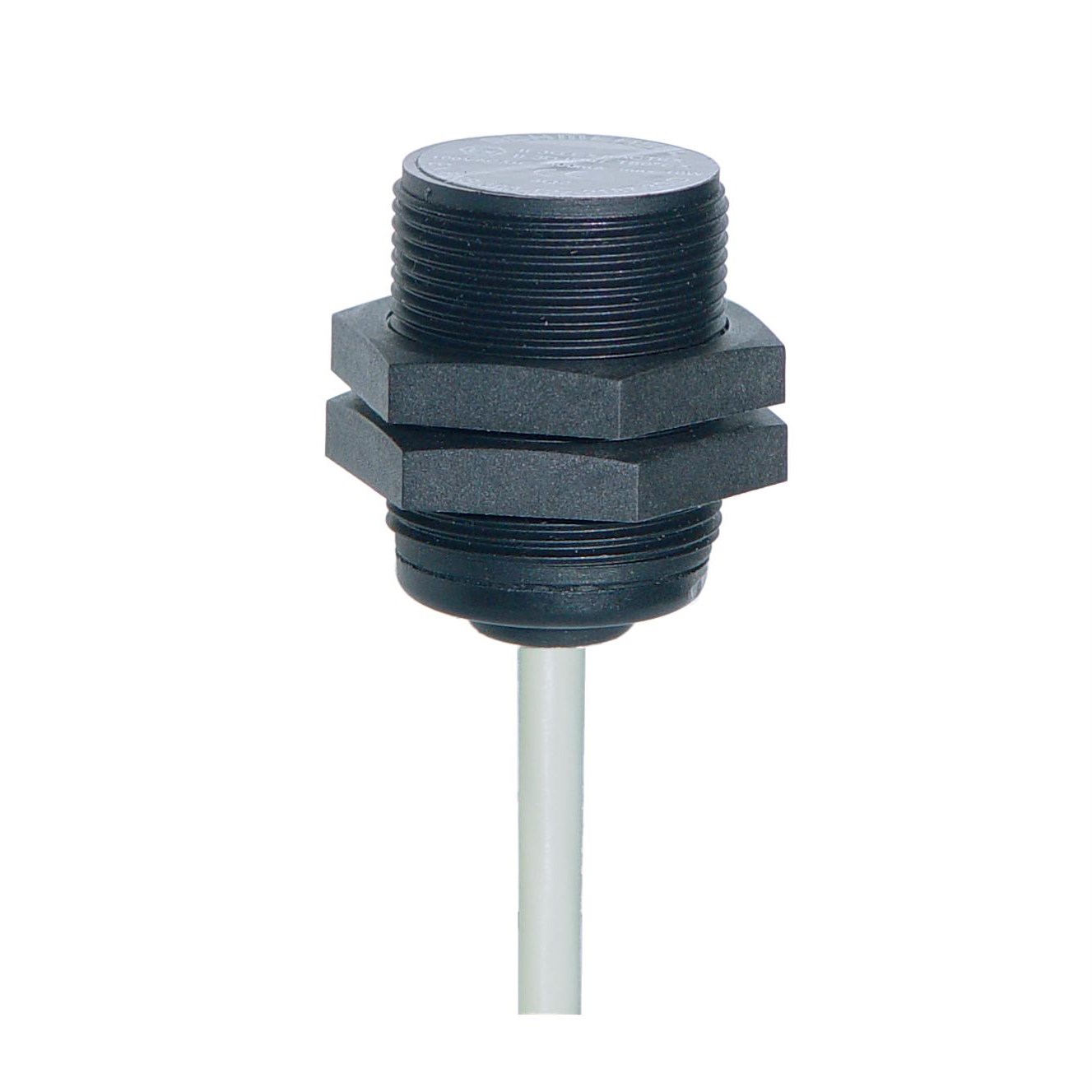

Schmersal 101187774 Magnetic Safety Sensor 5m Cable

Product Code: 101187774

  • Quasi-flush mounting for sleek installation
  • Durable with 25 million mechanical cycles
  • IP67 protection against dust and water
  • Operates in -25 to 70°C temperature range
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series EX-BNS
Actuating Element Magnet
Cable Length 5 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 44 mm L
Standards and Approvals EN IEC 60079-0 EN IEC 60079-15 EN 60079-31
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

<p>The product in focus is a robust industrial component designed to meet the demanding needs of various technical applications. With a rated voltage of 100 VAC and a current capacity of 0.4 A, this device delivers a reliable power output of 10 W, making it suitable for numerous operational environments.</p><p>Engineered with durability in mind, the product boasts an impressive mechanical life span of 25 million cycles. This longevity ensures minimal maintenance and replacement costs over time, providing excellent value for investment. The quasi-flush mounting type facilitates seamless integration into existing systems without protruding elements that could disrupt operations or aesthetics.</p><p>A key feature is its housing material—glass fibre reinforced thermoplastic—which offers exceptional strength and resistance to environmental factors while maintaining lightweight properties. The IP67 degree of protection guarantees dust-tight sealing and water resistance up to one meter immersion, ensuring optimal performance even in challenging conditions.</p><p>Operationally versatile, the device functions efficiently within temperatures ranging from -25&amp;#176;C to 70&amp;#176;C. It adheres to stringent standards and approvals including EN IEC 60079-0, EN IEC 60079-15, and EN 60079-31, underscoring its compliance with international safety regulations for explosive atmospheres.</p><p>The actuating element is magnet-based, enhancing precision and reliability in sensor activation processes. Its compact size of 44 mm length allows easy incorporation into tight spaces without compromising functionality.</p><p>For installation flexibility, the product includes a generous cable length of 5 meters with wire sizing at 0.25 sq-mm ensuring adequate conductivity while preventing energy loss over distance. Additionally, it exhibits vibration resistance between frequencies of 10-55 Hz which helps maintain stability under dynamic conditions common in industrial settings.</p><p>Overall, this product embodies a balance between advanced engineering and practical application requirements—making it an ideal choice for professionals seeking dependable performance backed by rigorous standards compliance.</p>
