Brand	SCHMERSAL
Actuating Element	Magnet
Door Weight (kg)	5kg (Hinged Guard), 3kg (Sliding Guard)
Installation Conditions	Quasi-flush
Latching Force (N)	100
Maximum Storage Temperature (°C)	70
Maximum Switching Capacity (W)	0.24
Maximum Switching Frequency (Hz)	5
Maximum Switching Voltage DC (V)	24
Minimum Ambient Temperature (°C)	-25
Minimum Storage Temperature (°C)	-25
No. of Cables	4
No. of Safety Contacts	2
Recommended Actuator	BNS-B20-B01
Recommended Safety Switchgear	SRB-E-301ST
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Sensor Height (mm)	140
Sensor Length (mm)	43.3
Sensor Width (mm)	119.5
Termination	Connecting Cable with M12 Connector, Straight, 4-Pole
Cable Length (m)	2
Degree of Protection	IP67
Housing Material	Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)	70
Maximum Switching Current (A)	0.01
No. of Normally-closed Contacts	2
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Wire Cross Section (mm²)	0.25mm² (Diameter)

Presence Sensing Safety Devices

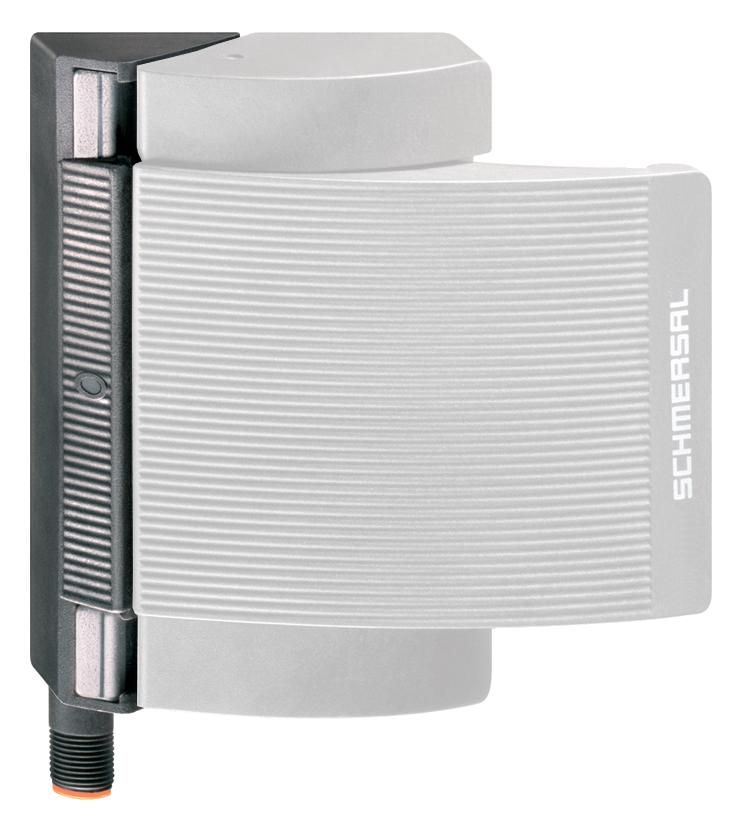

SCHMERSAL BNS-B20-02ZG-H-LST 2.0MMAGNETIC SAFETY SENSOR 101191703
