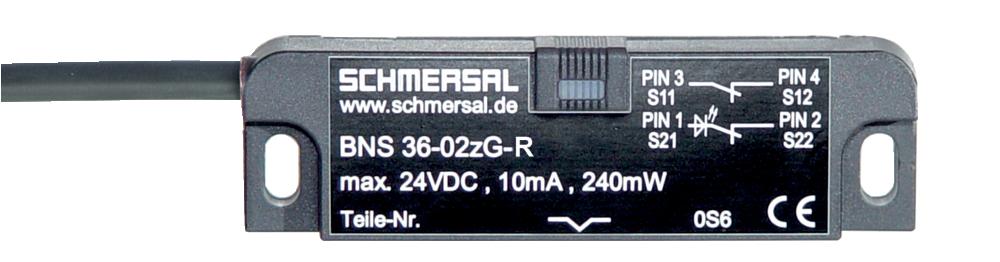

Schmersal 101199599 Magnetic Safety Sensor 5m Cable

Product Code: 101199599

  • Rated for 10W power and 0.4A current.
  • Durable with 25 million cycle lifespan.
  • Quasi-flush mounting design for easy installation.
  • IP67 protection against dust and water.
  • Operates in temperatures from -25 to 70°C.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 5 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Quasi-flush
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Sensor Size 13 mm L x 88 mm W x 25 mm H
Standards and Approvals BG-GS-ET-14 EN IEC 60947-5-3
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

<p>When selecting a reliable and robust sensor for industrial or commercial applications, understanding the technical specifications is crucial. This product offers a comprehensive set of features that cater to various operational needs, ensuring both efficiency and durability.</p><p>The sensor operates at a rated current of 0.4 A with a power rating of 10 W, making it suitable for moderate energy consumption tasks. It has an impressive mechanical life expectancy of 25 million cycles, which speaks volumes about its longevity in demanding environments.</p><p>Installation is straightforward thanks to its quasi-flush mounting type. The device comes equipped with a generous cable length of 5 meters, providing flexibility in positioning without compromising connectivity. Constructed from glass fibre reinforced thermoplastic, the housing material ensures robustness while maintaining lightweight properties.</p><p>With an IP67 degree of protection, this sensor is well-suited for harsh conditions as it can withstand dust ingress and temporary submersion in water up to one meter deep for half an hour. The operational temperature range extends from -25&amp;#176;C to 70&amp;#176;C, allowing it to function effectively across various climates and settings.</p><p>The actuating element utilizes a magnet system within a compact form factor—measuring just 13 mm by 88 mm by 25 mm—which makes it ideal for space-constrained installations. Additionally, the wire size is specified at 0.25 square millimeters, balancing conductivity and flexibility.</p><p>In terms of performance under dynamic conditions, the vibration resistance spans frequencies from 10 Hz to 55 Hz—ensuring stable operation even in environments subject to constant motion or vibrations.</p><p>For compliance and safety assurance, this product adheres to BG-GS-ET-14 standards along with EN IEC 60947-5-3 approvals—a testament to its quality and reliability according to international benchmarks.</p><p>This combination of features makes this sensor an excellent choice for professionals seeking dependable performance backed by rigorous standards compliance in diverse industrial scenarios.</p>
