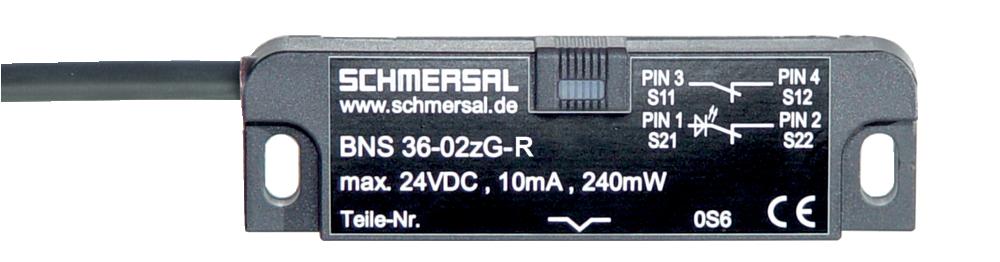

Schmersal 101216950 Magnetic Safety Sensor 1m Cable

Product Code: 101216950

  • Handles up to 0.4 A and 10 W
  • Durable with 25 million cycles
  • Quasi-flush mounting design
  • IP67 protection rating
  • Operates from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Quasi-flush
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Sensor Size 13 mm L x 88 mm W x 25 mm H
Standards and Approvals BG-GS-ET-14 EN IEC 60947-5-3
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

<p>When it comes to industrial and commercial applications, reliability and precision are key. This product delivers on both fronts with a robust set of features designed for optimal performance. With a rated current of 0.4 A and a power rating of 10 W, it offers efficient energy consumption suitable for various operational needs.</p><p>The device operates at a low frequency of 5 Hz, ensuring smooth functionality across its extensive mechanical life span of 25 million cycles. Such durability makes it an excellent choice for environments demanding consistent performance over time.</p><p>Installation is straightforward thanks to its quasi-flush mounting type, which provides a clean finish while maintaining ease of access for maintenance or adjustments. The unit&amp;#39;s cable length measures 1 meter, offering flexibility in positioning without excess slack that could complicate installation or operation.</p><p>Constructed from glass fibre reinforced thermoplastic, the housing material is both lightweight and exceptionally durable, providing resistance to wear and tear in demanding conditions. Additionally, this product boasts an IP67 degree of protection, safeguarding against dust ingress and temporary immersion in water—a crucial feature for harsh industrial settings.</p><p>The operational temperature range spans from -25 to 70 degrees Celsius, accommodating various environmental conditions without compromising performance. This versatility ensures that the device can function effectively whether it&amp;#39;s installed indoors or outdoors in fluctuating temperatures.</p><p>This product complies with BG-GS-ET-14 EN IEC 60947-5-3 standards and approvals—an assurance of quality that meets international safety regulations. The actuating element is magnet-based, providing precise control essential for sensitive applications.</p><p>Measuring at a compact size of 13 mm L x 88 mm W x 25 mm H, the sensor fits seamlessly into tight spaces without sacrificing functionality. Its wire size is specified at 0.25 sq-mm, balancing conductivity with structural integrity to minimize potential issues during installation or operation.</p><p>Moreover, the vibration resistance from 10-55 Hz further enhances stability in dynamic environments where equipment may be subject to movement or vibrations during use.</p><p>In summary, this product combines efficiency with rugged construction tailored specifically for industrial demands—delivering reliable performance across an array of challenging applications while adhering to stringent safety standards.</p>
