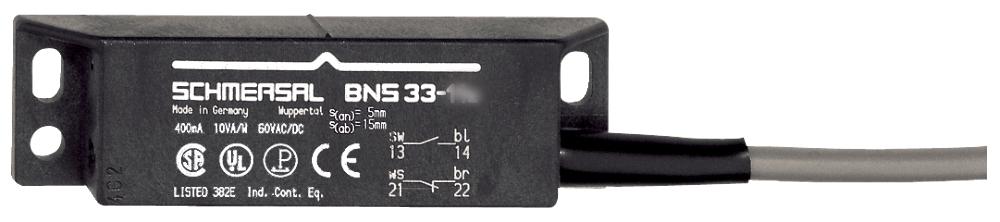

SCHMERSAL BNS 33-12ZG 5.0MMAGNETIC SAFETY SENSOR 101117546
Zoom
SCHMERSAL BNS 33-12ZG 5.0MMAGNETIC SAFETY SENSOR 101117546
Product Code: 101117546
Technical Specifications
Actuating Element
Magnet
Direction of Motion
Head-on to the Active Surface
Installation Conditions
Not Flush
Maximum Storage Temperature (°C)
70
Maximum Switching Capacity (W)
0.24
Maximum Switching Frequency (Hz)
5
Minimum Ambient Temperature (°C)
-25
Minimum Storage Temperature (°C)
-25
No. of Cables
4
No. of Safety Contacts
2
Recommended Actuator
BPS 33-2326
Recommended Safety Switchgear
SRB-E-301ST
Resistance to Shock (g/ms)
30g / 11ms
Resistance to Vibrations
10 ... 55Hz, Amplitude 1mm
Sensor Height (mm)
25
Sensor Length (mm)
13
Sensor Width (mm)
88
Termination
Cable
Brand
SCHMERSAL
Cable Length (m)
5
Degree of Protection
IP67
Housing Material
Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)
70
Maximum Switching Current (A)
0.01
No. of Normally-closed Contacts
2
No. of Normally-open Contacts
1
Standards and Approvals
EN IEC 60947-5-3, EN ISO 13849-1
Wire Cross Section (mm²)
0.25mm² (Diameter)
