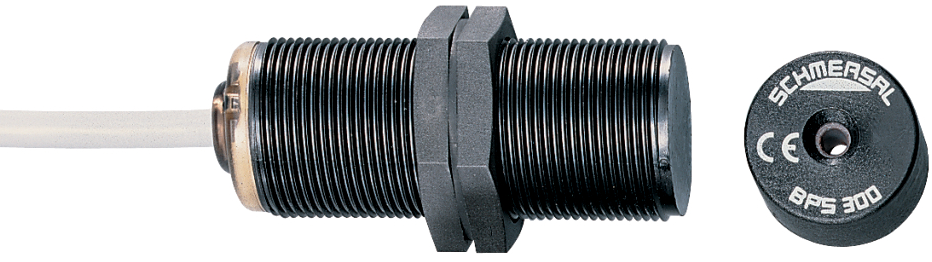

Schmersal 101185422 Magnetic Safety Sensor 3m Cable

Product Code: 101185422

  • Operates at 24 VDC, 3 A, and 750 W
  • Durable with 20 million cycle lifespan
  • IP67 protection for harsh environments
  • Glass fibre reinforced thermoplastic housing
  • Quasi-flush mount with a 3 m cable
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 3 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 55 deg C
Rated Current 3 A
Rated Power 750 W
Rated Voltage 24 VDC
Sensor Size 78 mm L
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.75 sq-mm

Description

<p>For professionals in the industrial and commercial sectors, selecting the right equipment is crucial to ensure efficiency and reliability. This product offers a robust solution for those seeking dependable performance under demanding conditions. Operating at a rated voltage of 24 VDC with a current capacity of 3 A, it delivers a substantial power output of 750 W, making it suitable for various applications.</p><p>The design incorporates a quasi-flush mounting type, allowing seamless integration into your systems while maintaining an aesthetically pleasing appearance. With an impressive mechanical life of 20 million cycles, this product promises longevity and durability, reducing the need for frequent replacements or maintenance.</p><p>Constructed from glass fibre reinforced thermoplastic, the housing material ensures high resistance to impact and environmental factors. The IP67 degree of protection further enhances its resilience by safeguarding against dust ingress and water immersion up to one meter depth for short durations. </p><p>Operating efficiently within temperatures ranging from -25&amp;#176;C to 55&amp;#176;C, this device is versatile enough to function in diverse environments without compromising performance. The actuating element features a magnet with a sensor size of 78 mm length, providing precise operation and reliable activation.</p><p>Installation is simplified with a generous cable length of 3 meters and wire size of 0.75 sq-mm, offering flexibility in setup without constraints on connectivity or positioning. Additionally, its vibration resistance between frequencies of 10-55 Hz ensures stable operation even in dynamic settings.</p><p>This product complies with critical standards such as BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1 which underscores its commitment to safety and quality assurance across various jurisdictions. These certifications guarantee adherence to international benchmarks for operational safety and functional integrity.</p><p>Whether you&amp;#39;re upgrading existing systems or implementing new installations, this device provides technical reliability backed by rigorous standards compliance—making it an excellent choice for professionals prioritizing both performance and peace-of-mind in their operations.</p>
