SCHMERSAL MAGNETIC SAFETY SENSOR 101149416
Zoom

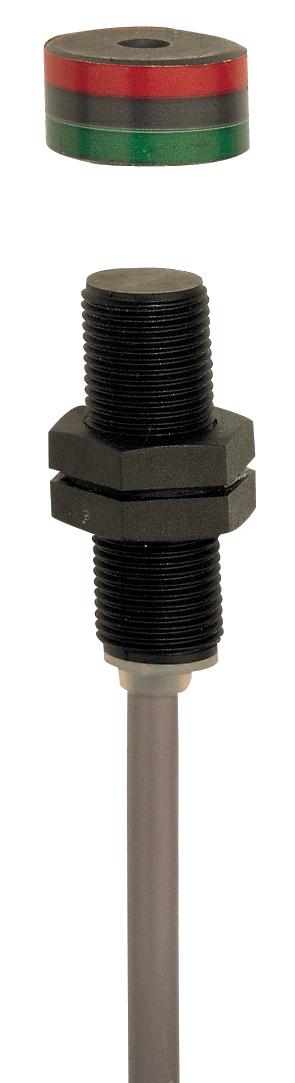

SCHMERSAL MAGNETIC SAFETY SENSOR 101149416
Product Code: 101149416
Technical Specifications
Cable Note
All indications including the conductor ferrules.
Coding Level According to EN ISO 14119
High
eCl@ss Number, Version 11.0
27-37-12-13
eCl@ss Number, Version 9.0
27-37-12-11
ETIM 6.0
EC000223
ETIM 7.0
EC000221
Gross Weight (g)
35
Housing Construction Form
Norm construction design
Maximum Actuating Speed (m/s)
0.3
Maximum Fuse Rating
6 A gG D-fuse
Minimum Actuating Speed (mm/min)
1
Minimum Ambient Temperature (°C)
-25
Minimum Positive Break Force (N)
20
Net Weight (g)
1900
No. of Auxiliary Contacts
1
No. of Safety Contacts
4
Rated Short-circuit Current (A)
1000
Resistance to Shock (g/ms)
15 / 11
Sensor Height (mm)
36
Sensor Length (mm)
80
Switching Element
2 NO contact
Switching Principle
Slow action
Utilisation Category
DC-13 | AC-15
Utilisation Category DC-13
0.05 A
Wire Cross-Section
11 AWG
Working Principle
Optoelectronic
Brand
SCHMERSAL
Actuator Type
Plunger
Contact Material
Silver
Degree of Protection
IP65
EAN
4030660000000
Enclosure Material
Aluminium
Maximum Ambient Temperature (°C)
80
Maximum Cable Cross Section (mm²)
2 x 2.5
Minimum Cable Cross Section (mm²)
0.75
Minimum Mechanical Life
5000000 Operations
Overvoltage Category
3
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage (V)
250
Standards
EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C)
-25 to 85
Terminal Type
Connector
