SCHMERSAL BN325-RG-1279 MAGNETIC REED SWITCH 101147106
Zoom

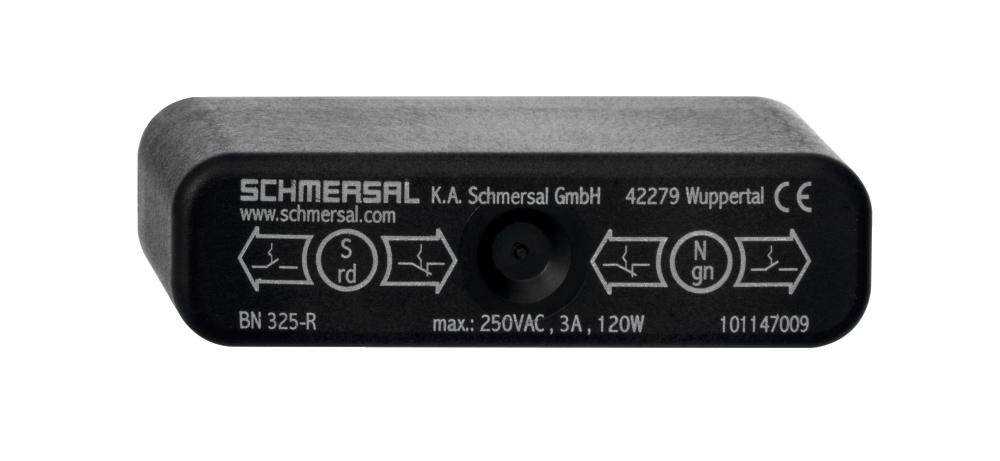

SCHMERSAL BN325-RG-1279 MAGNETIC REED SWITCH 101147106
Product Code: 101147106
Explore the Schmersal BN325 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a thermoplastic housing, this rectangular switch features a spade connector with a terminal connector cable outlet positioned on the left side, complemented by two shielding plates equipped with LEDs. The front actuation design allows for easy integration into various applications. This bistable contact switch offers an operational distance range between 5 mm and 55 mm, ensuring versatility across different sensing requirements. It operates at a maximum switching voltage of 250 VAC and can handle currents up to 3 A, with a maximum switching capacity of 120 W at a frequency of 300 Hz. Engineered for reliability, the BN325 operates within a temperature range of -25°C to 70°C and maintains an IP40 rating for protection against solid objects. Note that actuators are not included and must be purchased separately. Whether you're managing industrial controls or designing safety systems, this magnetic reed switch provides consistent performance where precision is paramount.
Technical Specifications
Maximum Nominal Output Voltage AC (V)
250
Maximum Temperature (°C)
70
Minimum Temperature (°C)
-25
Nominal Output Current (A)
3
Nominal Power (W)
120
Brand
SCHMERSAL
Degree of Protection
IP40
Mounting Type
Threaded
Series
BN325
Documents
Datasheet
Product catalogue (Flipbook)
