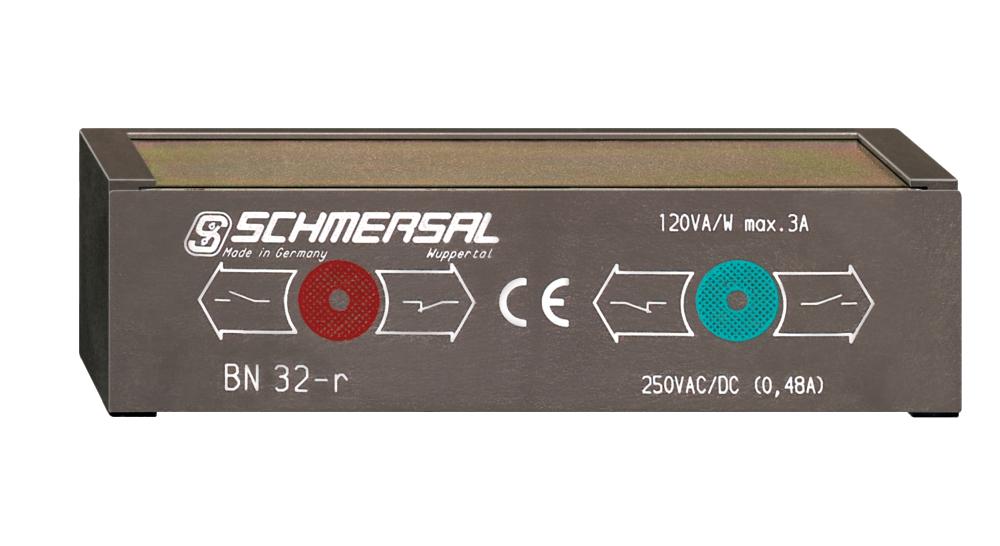

SCHMERSAL BN 32-R-1239MAGNETIC REED SWITCH 101057234
Zoom
SCHMERSAL BN 32-R-1239MAGNETIC REED SWITCH 101057234
Product Code: 101057234
Technical Specifications
Actuating Element
Magnet
Maximum Actuating Speed (m/s)
18
Maximum Bounce Duration (ms)
0.6
Maximum Switching Capacity (VA)
120
Maximum Switching Capacity (W)
120
Minimum Ambient Temperature (°C)
-25
Minimum Bounce Duration (ms)
0.3
No. of Snap in Contacts
1
Recommended Actuator
BP 10 S
Repeat Accuracy (mm)
0.25
Sensor Height (mm)
26
Sensor Length (mm)
24
Sensor Width (mm)
85
Switching Element
NO Contact
Termination
Flat Plug-in Connector 4.8mm
Brand
SCHMERSAL
Degree of Protection
IP67
Housing Material
Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)
90
Maximum Switching Current (A)
3
Maximum Switching Voltage AC (V)
250
Minimum Mechanical Life
1000000000 Operations
Documents
Datasheet
IPD Product Catalogue V17
