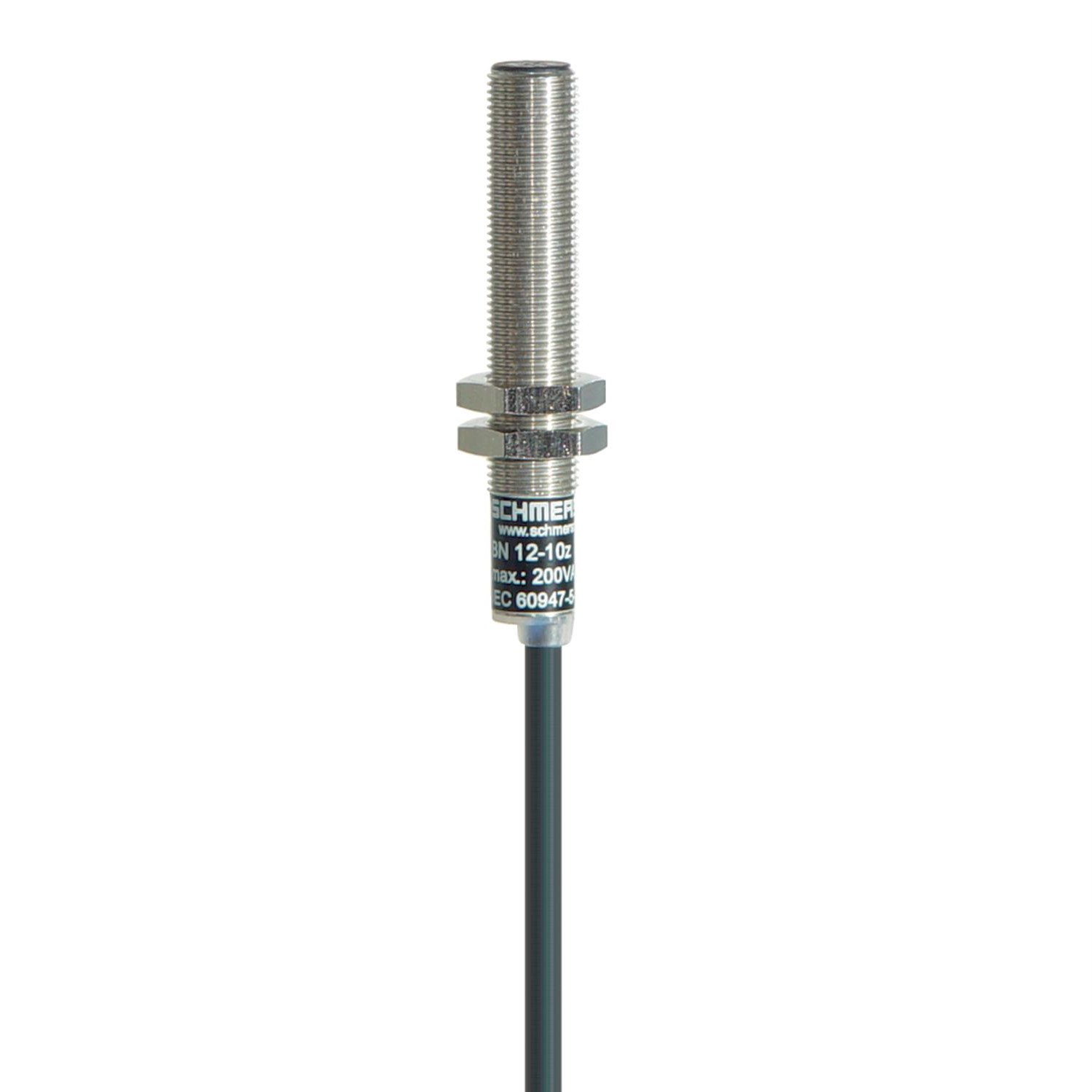

Schmersal 101186833 Magnetic Reed Switch 1m L Cable 1A BP 10 Cable Terminal

Product Code: 101186833

  • Rated for 200 VAC, 1 A
  • Durable metal housing, IP67 protection
  • Operates in -25 to 70°C range
  • Magnetic drive with NC contact config
  • Mechanical life of 10 million ops
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Reed Switch
Brand SCHMERSAL
Series BN 12
Accuracy 0.3 mm
Actuating Element Magnet
Actuating Speed 18 m/s
Bounce Duration 0.2 ms
Cable Length 1 m
Contact Configuration NC
Control Element Reed Contacts
Degree of Protection IP67
Housing Material Metal
Mechanical Life 10000000 Operations
Mounting Type Threaded
Operational Temperature -25 to 70 deg C
Rated Current 1 A
Rated Voltage 200 VAC
Resistance 10-55 Hz
Switching Capacity 30 W
Switching Type Magnetic Drive
Weight 58 g

Description

<p>In the world of industrial automation and electrical engineering, precision, reliability, and durability are paramount. This product is designed to meet those exacting standards with a robust feature set suited for demanding environments.</p><p>Operating at a rated voltage of 200 VAC and a current of 1 A, this device provides reliable performance in various applications. Its accuracy stands at an impressive 0.3 mm, ensuring precise operations where every millimeter counts.</p><p>Constructed from durable metal housing material, it offers enhanced protection against physical impacts and environmental factors. The device boasts an IP67 degree of protection, making it dust-tight and capable of withstanding immersion in water up to one meter deep for short periods—ideal for harsh industrial settings.</p><p>With an operational temperature range from -25 to 70 degrees Celsius, this product remains functional across diverse climatic conditions. Weighing just 58 grams, it is lightweight yet sturdy enough for long-term use without compromising on performance.</p><p>The cable length measures 1 meter, providing adequate reach while maintaining flexibility during installation. Featuring a normally closed (NC) contact configuration combined with magnetic drive switching type ensures reliable operation in automated systems.</p><p>Capable of actuating speeds up to 18 m/s and equipped with reed contacts as the control element along with a magnet as the actuating element—this switch delivers swift response times crucial in high-speed applications.</p><p>Engineered for longevity, the mechanical life extends up to ten million operations—a testament to its endurance under continuous use scenarios. With a switching capacity rated at 30 watts coupled with minimal bounce duration of just 0.2 milliseconds—it guarantees efficient power management within your system architecture.</p><p>Moreover resistance between frequencies ranging from 10-55 Hz further underscores its versatility across varied operational contexts—ensuring stability even amidst fluctuating environmental vibrations or shocks commonly encountered within industrial setups.</p><p>This comprehensive suite makes it suitable not only for general-purpose applications but also specialized tasks requiring stringent specifications adherence—all wrapped into one compact solution ready-made tailored towards fulfilling technical needs seamlessly!</p>
