Duration of Risk (ms)	200
Latching Force (N)	30
Maximum Actuating Speed (m/s)	0.2
Maximum Holding Force (N)	2600
Maximum Reaction Time (ms)	100
Maximum Relative Humidity	95% (Non-condensing)
Maximum Storage Temperature (°C)	85
Maximum Switching Frequency (Hz)	1
Minimum Ambient Temperature (°C)	-25
Minimum Relative Humidity	10%
Minimum Storage Temperature (°C)	-25
No. of Actuating Directions	2
Performance Level	e (Interlocking Function)
Recommended Actuator	AZ/AZM201-B1
Release Type	Manual
Resistance to Shock (g/ms)	30g / 11ms
Resistance to Vibrations	10 ... 150Hz, Amplitude 0.35mm
Safety Functions	Yes
Sensor Height (mm)	220
Sensor Length (mm)	50
Sensor Width (mm)	40
Termination	Connector Plug M12, 4-Pole, (A-coding)
Time to Readiness (ms)	4000
Brand	SCHMERSAL
Degree of Protection	IP66
Holding Force (N)	2000
Housing Material	Glass-fibre, Reinforced Thermoplastic
Maximum Ambient Temperature (°C)	60
Minimum Mechanical Life	1000000 Operations
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	32DC
Rated Operational Voltage DC (V)	24V -15% / +10% (AUX Voltage)
Standards and Approvals	EN ISO 13849-1, EN IEC 61508

Safety Interlocks

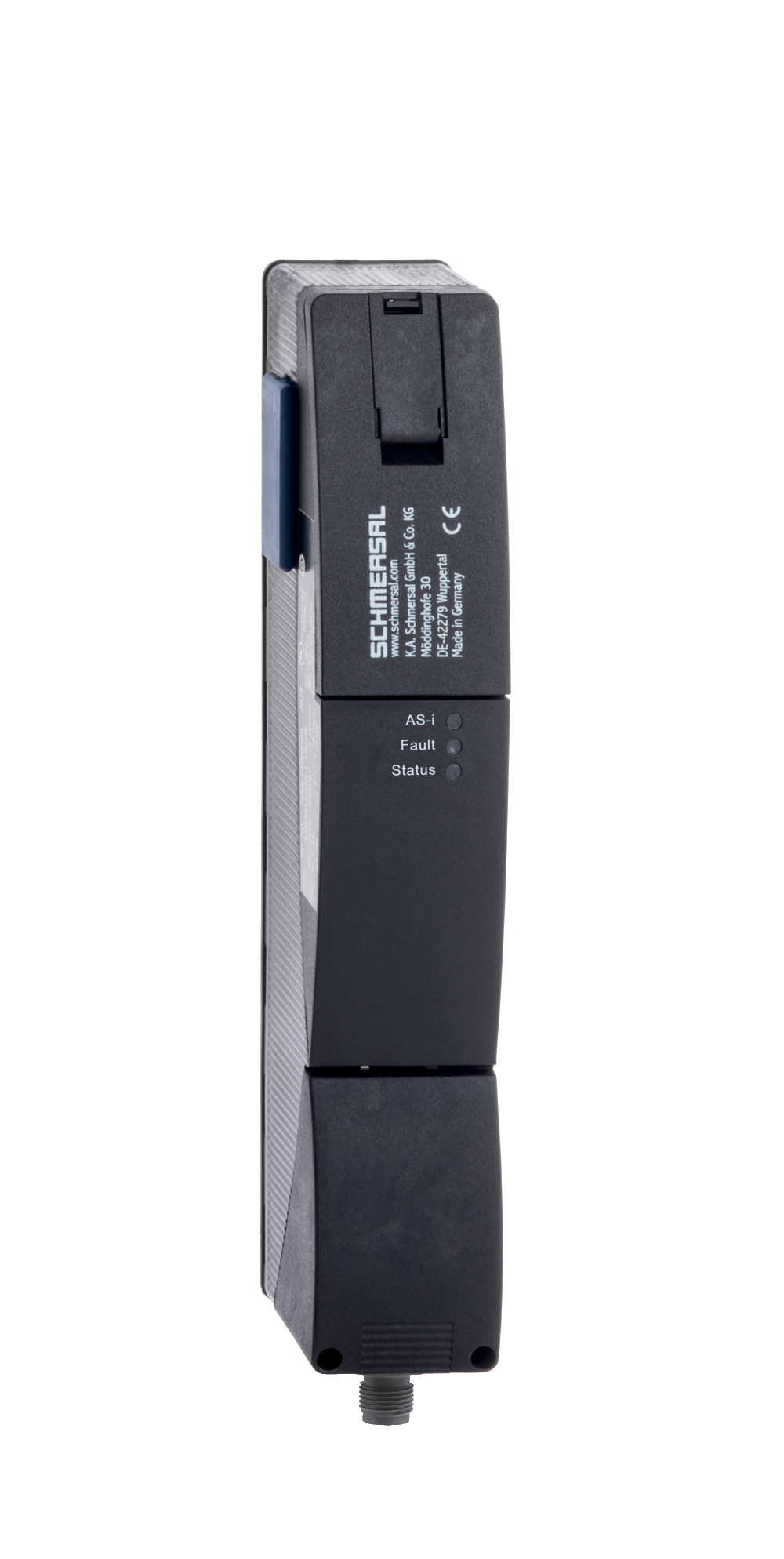

SCHMERSAL AZM201B-ST-T-AS-P 103025859
