Product Code: 101167209

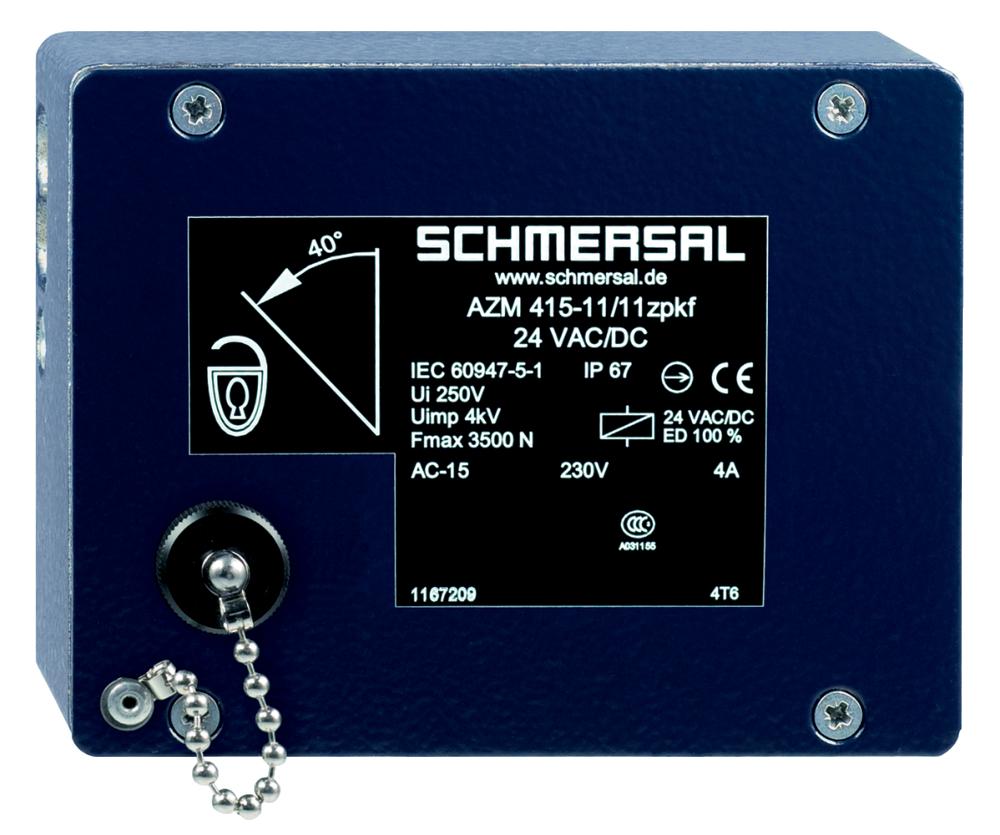

The Schmersal AZM415 is a robust solenoid interlock designed to enhance machine safety. This power-to-unlock device features a manual release and is engineered for single-direction actuation. It includes two auxiliary contacts and two safety contacts, suitable for securing one guard door. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 1 A), ensuring reliable operation in various industrial applications. The AZM415 series represents Schmersal's commitment to high-quality safety solutions for machinery.

Brand	SCHMERSAL
Cable Note	All indications including the conductor ferrules.
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 6.0	EC002549
ETIM 7.0	EC001038
Gross Weight (g)	1657
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	60
No. of Auxiliary Contacts	2
No. of Safety Contacts	1
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	84
Sensor Length (mm)	33
Switching Element	NO contact, NC contact
Switching Principle	Snap action
Utilisation Category	DC-13 \| AC-15
Utilisation Category AC-15	2.5 A
Working Principle	RFID
Actuator Type	Offset roller lever K210
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5 , rigid \| 1.5 , flexible
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	500
Series	AZM415
Standards	EN IEC 60947-5-3 / BG-GS-ET-14
Terminal Type	Connector M12, 6-pole
