Product Code: 101186204

The Schmersal AZM415 is a robust solenoid interlock designed for machine safety applications, featuring a durable metal enclosure and power-to-lock functionality. This unit is engineered with a single actuating direction and supports one guard door. It comes equipped with four safety contacts and utilizes screw connection terminals for secure wiring. The opener has a normally closed (NC) configuration, ensuring reliable operation. With a thermal test current of 6 A and rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 1 A. This interlock system is ideal for engineers looking to maintain high safety standards in their machinery without auxiliary contacts.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-03
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 6.0	EC002593
ETIM 7.0	EC002593
Gross Weight (g)	388.24
Maximum Actuating Speed (m/s)	0.2
Maximum Fuse Rating	10 A gG D-fuse slow blow
Maximum Temperature (°C)	50
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	240.95
No. of Safety Contacts	3
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	37
Switching Element	Normally open contact (NO)
Switching Principle	slow action, positive break NC contact
Utilisation Category	DC-12
Utilisation Category DC-13	24 VDC
Actuator Type	Rod lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	75
Series	AZM415
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / EN ISO 14119
Terminal Type	Screw terminals M20 x 1.5

Position Switches & Sensors

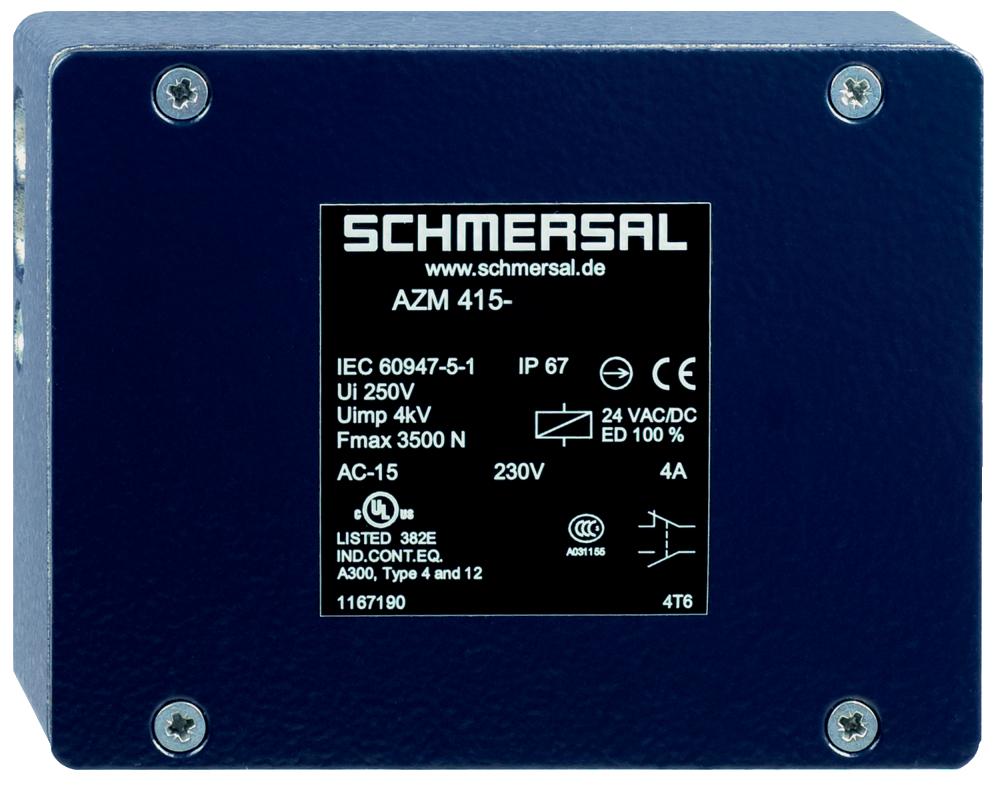

SCHMERSAL AZM415-02/02ZPKA 24VAC/DC SOLENOID INTERLOCK 101186204
