Product Code: 101183251

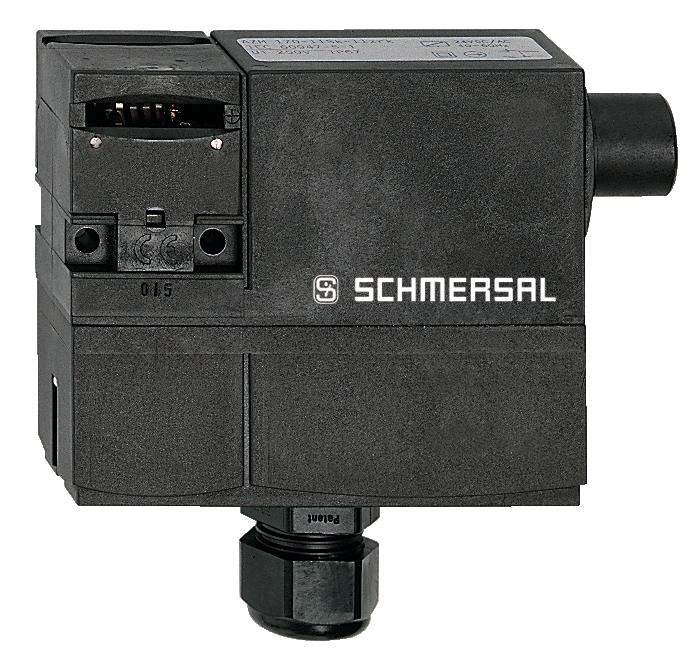

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed to ensure secure power locking with a manual release option. This device features two actuating directions, enhancing its versatility in various applications. It includes one auxiliary contact and three safety contacts, ensuring reliable connection and disconnection operations. The interlock is equipped with screw terminals for secure wiring and both normally open (NO) and normally closed (NC) contact configurations. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets the demands of utilisation category DC-13 at 24 VDC with a current rating of 4 A. Engineered for dependable performance, this product is an essential component for machine safety systems.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	166.509
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Net Weight (g)	642.91
No. of Safety Contacts	3
Rated Short-circuit Current (A)	100
Sensor Height (mm)	90
Sensor Length (mm)	14.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	AC-15
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Metal, zinc die-cast
Maximum Ambient Temperature (°C)	50
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1 x 0.25
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	250
Series	AZM170
Standards	EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Terminal Type	Screw terminals M20 x 1.5
