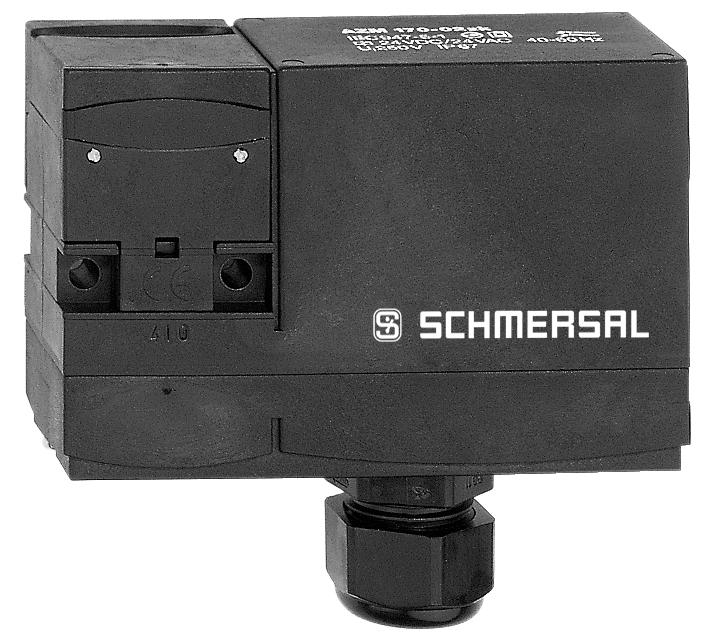

SCHMERSAL AZM 170SK-02ZKA 24VAC/DCSOLENOID INTERLOCK 101150060
Zoom
SCHMERSAL AZM 170SK-02ZKA 24VAC/DCSOLENOID INTERLOCK 101150060
Product Code: 101150060
Technical Specifications
Latching Force (N)
5
Maximum Actuating Speed (m/s)
2
Maximum Fuse Rating
6 A gG D-fuse
Maximum Holding Force (N)
1300
Maximum Storage Temperature (°C)
85
Minimum Ambient Temperature (°C)
-25
Minimum Positive Break Force (N)
17
Minimum Storage Temperature (°C)
25
No. of Actuating Directions
2
No. of Auxiliary Contacts
1
No. of Safety Contacts
2
Positive Break Travel (mm)
11
Rated Control Voltage AC/DC (V)
24
Rated Operational Current AC-15 (A)
Safety Contacts - 4A
Rated Operational Current DC-13 (A)
Safety Contacts - 2.5A
Rated Short-circuit Current (A)
1000
Sensor Height (mm)
84
Sensor Length (mm)
30
Sensor Width (mm)
90
Switching Element
Opener (NC)
Switching Frequency
1000/h
Switching Principle
Slow Action
Termination
Screw Terminals
Thermal Test Current (A)
6
Brand
SCHMERSAL
Contact Material
Silver
Degree of Protection
IP67
Holding Force (N)
1000
Housing Material
Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Ambient Temperature (°C)
60
Maximum Cable Cross Section (mm²)
1.5
Minimum Cable Cross Section (mm²)
0.25
Minimum Mechanical Life
1000000 Operations
Power Consumption (W)
12
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage (V)
250
Standards and Approvals
EN IEC 60947-5-1, EN ISO 13849-1
