Product Code: 101182772

Enhance your machine safety with the Schmersal AZM170 series solenoid interlock. This robust device ensures secure locking with a power-to-unlock mechanism and features a convenient manual release. Designed for versatility, it offers two actuating directions and is equipped with three safety contacts for reliable operation. The interlock has no auxiliary contacts and utilizes screw terminals for secure connections. It operates with an opener (normally closed) configuration, a thermal test current of 6 A, and a rated control voltage of 24 VAC/DC. Suitable for high-demand applications, it meets the DC-13 utilization category at both 24 VDC and 4 A. Trust in Schmersal's commitment to machine safety with this efficient solenoid interlock solution.

Brand	SCHMERSAL
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	4825
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-25
Minimum Temperature (°C)	-25
Net Weight (g)	26.665
No. of Safety Contacts	2
Rated Short-circuit Current (A)	100
Sensor Height (mm)	173.5
Sensor Length (mm)	46.5
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Thermal Test Current (A)	0.25
Utilisation Category	DC-13 \| AC-15
Actuator Type	Roller lever
Contact Material	Silver
Degree of Protection	IP67
EAN	4030660000000
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1 x 1.0 , flexible
Minimum Cable Cross Section (mm²)	1 x 0.25
Minimum Mechanical Life	10000000 Operations
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Series	AZM170
Standards	EN IEC 60947-5-1 / EN ISO 14119
Terminal Type	Cable

Position Switches & Sensors

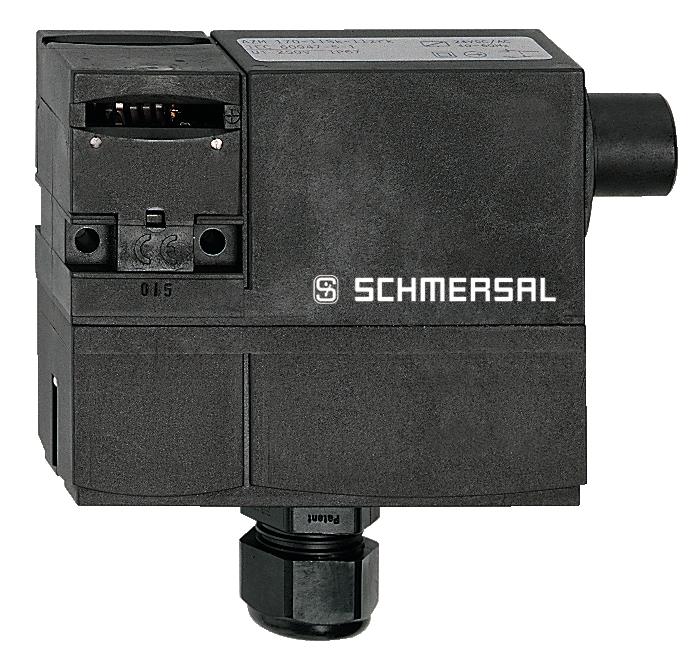

SCHMERSAL AZM170SK-02/01ZRK-2197-24VAC/DC SOLENOID INTERLOCK 101182772
