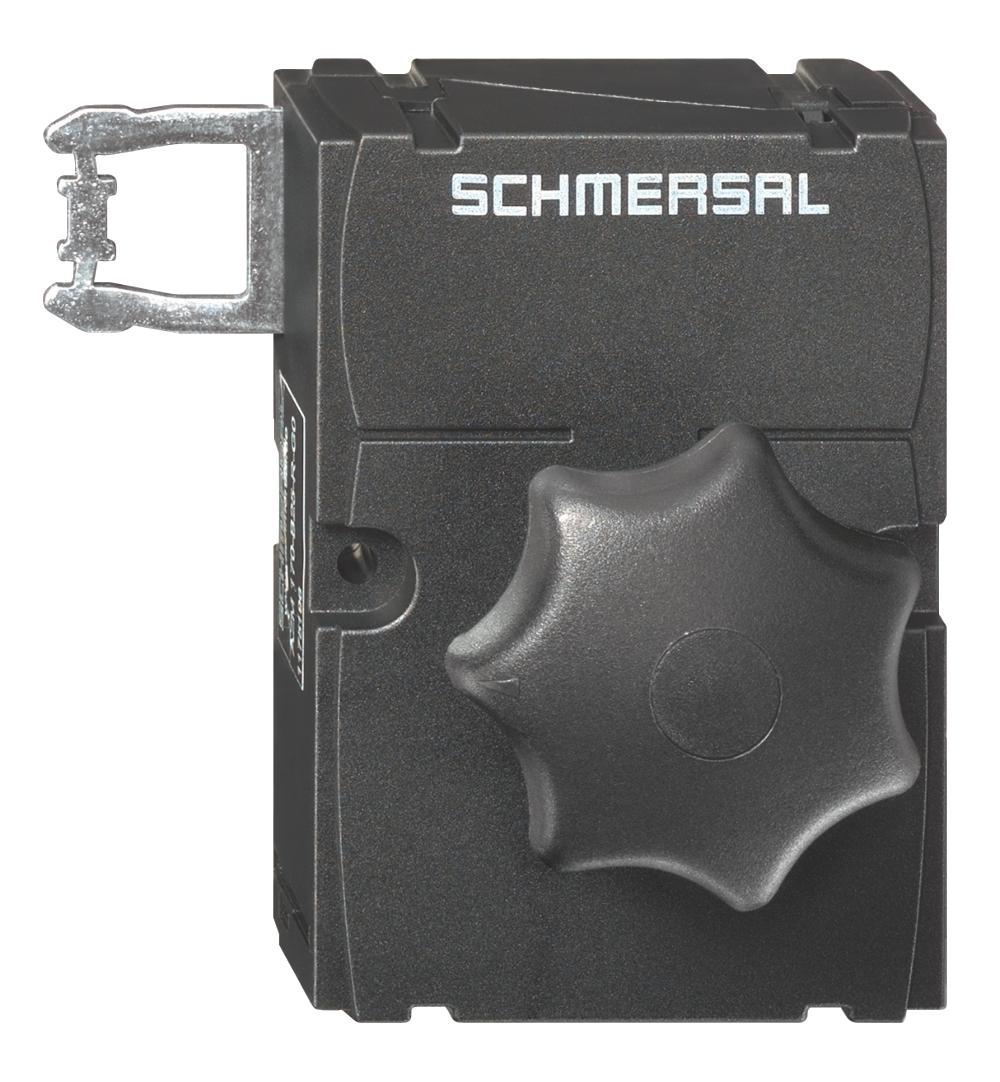

SCHMERSAL AZM 170-B25-R-G1 SOLENOID INTERLOCK 101175200

Product Code: 101175200

Enhance your machine safety with the Schmersal AZM170 series solenoid interlocks. Designed for right-hinged doors, this robust actuator features a user-friendly star grip and offers simple mounting options. With a variety of door handles to choose from, the AZM170 series ensures secure access control tailored to your needs. Trust in Schmersal's commitment to reliable safety solutions for industrial applications.

Technical Specifications

Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-06
ETIM 6.0 EC002549
ETIM 7.0 EC002026
Explosion Protection Category 3D | 3G
Gross Weight (g) 215
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -25
Net Weight (g) 22
No. of Safety Contacts 4
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 117
Sensor Length (mm) 79
Switching Element NO contact, NC contact
Switching Principle Snap action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 1.5 A
Working Principle RFID
Brand SCHMERSAL
Actuator Type Roller plunger
Contact Material Silver
Degree of Protection IP20
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 30000000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Series AZM170
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Terminal Type Cable
