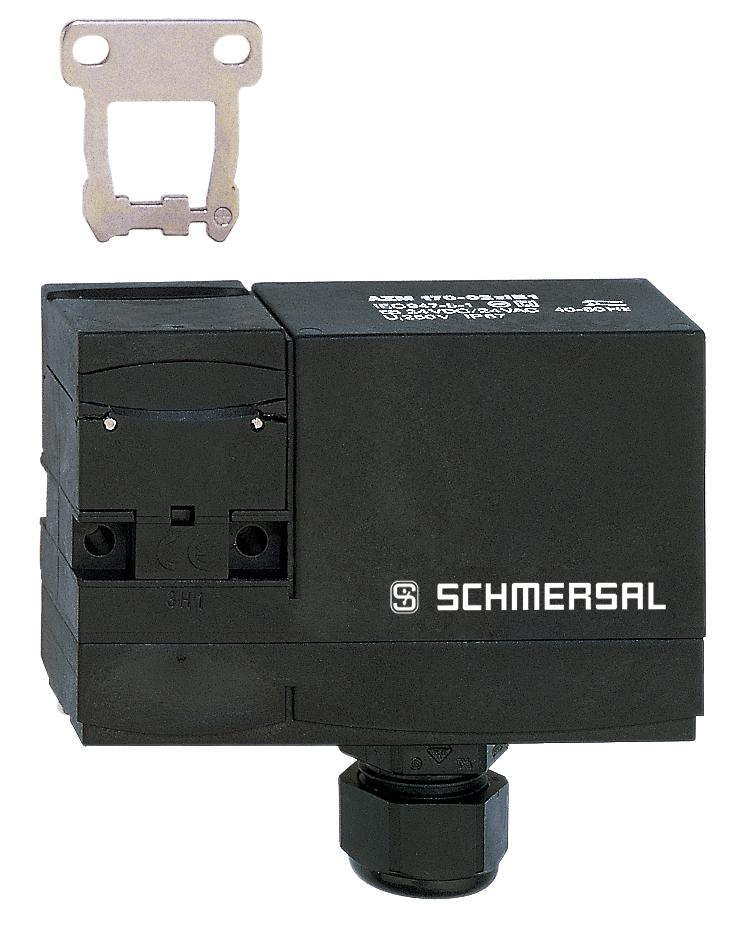

SCHMERSAL AZM 170-02ZRI-B6L-2197 24VAC/DC SOLENOID INTERLOCK 101144353
Zoom
SCHMERSAL AZM 170-02ZRI-B6L-2197 24VAC/DC SOLENOID INTERLOCK 101144353
Product Code: 101144353
Optimize your machine safety with the Schmersal AZM170 series solenoid interlock. Designed for applications requiring minimal actuating radii, this robust interlock features a power-to-unlock mechanism complemented by a manual release option. It supports two actuating directions and is equipped with two safety contacts, ensuring reliable operation without auxiliary contacts. The IDC terminal connector ensures a secure and efficient electrical connection. With an opener (NC) function, it can handle a thermal test current of 6 A and has a rated control voltage of 24 VAC/DC. This solenoid interlock is suitable for use in both AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 2.5 A) utilization categories, making it versatile for various industrial applications within the realm of machine safety equipment.
Technical Specifications
Maximum Temperature (°C)
60
Minimum Temperature (°C)
-25
Brand
SCHMERSAL
Degree of Protection
IP67
Series
AZM170
Documents
Product catalogue (Flipbook)
Datasheet
