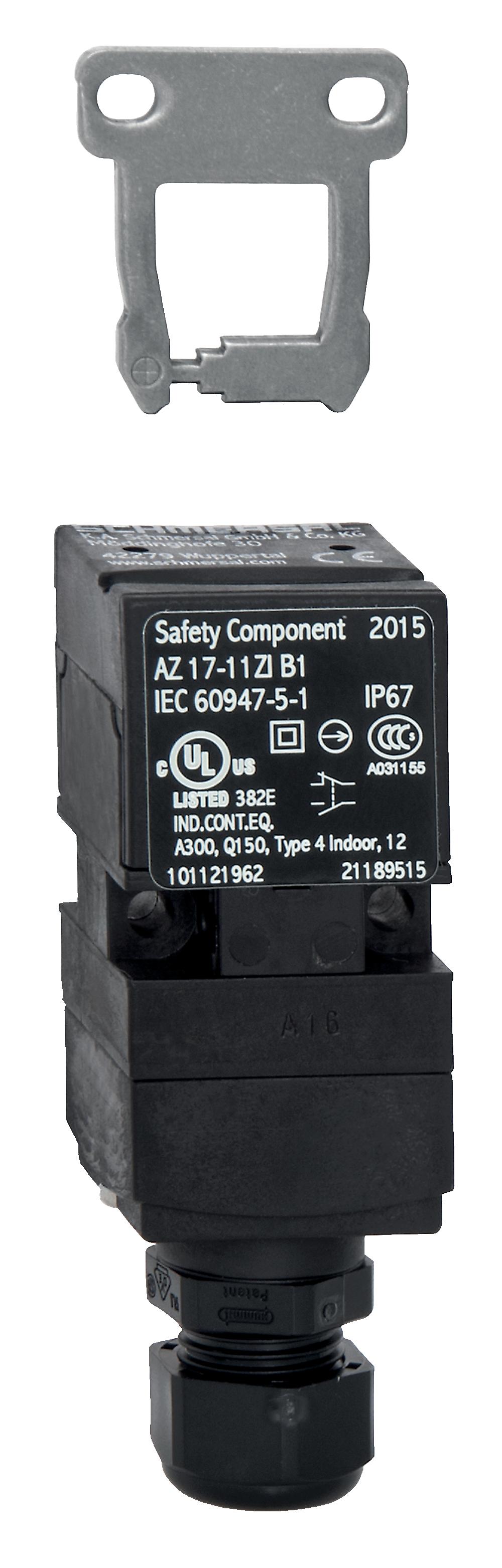

SCHMERSAL AZ 17-11ZI B1SAFETY SWITCHWITH SEPARATE ACTUATOR 101121962
Zoom
SCHMERSAL AZ 17-11ZI B1SAFETY SWITCHWITH SEPARATE ACTUATOR 101121962
Product Code: 101121962
Technical Specifications
Actuator Material
Stainless Steel
Latching Force (N)
5
Maximum Actuating Speed (m/s)
2
Maximum Fuse Rating
6 A gG D-fuse
Minimum Ambient Temperature (°C)
-30
No. of Auxiliary Contacts
1
No. of Cable Glands
1
No. of Safety Contacts
1
Positive Break Travel (mm)
11
Rated Operational Current AC-15 (A)
Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Current DC-13 (A)
Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Voltage AC-15 (V)
230V AC
Rated Operational Voltage DC-13 (V)
24 VDC
Rated Short-circuit Current (A)
1000
Sensor Height (mm)
85
Sensor Length (mm)
30
Sensor Width (mm)
30
Switching Element
NO Contact, NC Contact
Switching Frequency
2000/h
Switching Principle
Slow Action, Positive Break NC Contact
Termination
IDC Method of Termination
Thermal Test Current (A)
10
Brand
SCHMERSAL
Contact Material
Silver
Degree of Protection
IP67
Housing Material
Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Included
Tamperproof Screws
Maximum Ambient Temperature (°C)
80
Maximum Cable Cross Section (mm²)
1
Maximum Operational Voltage (V)
230
Minimum Cable Cross Section (mm²)
0.75
Minimum Mechanical Life
1000000 Operations
Pollution Degree
3
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage (V)
250
Standards and Approvals
EN IEC 60947-5-1, EN ISO 13849-1
