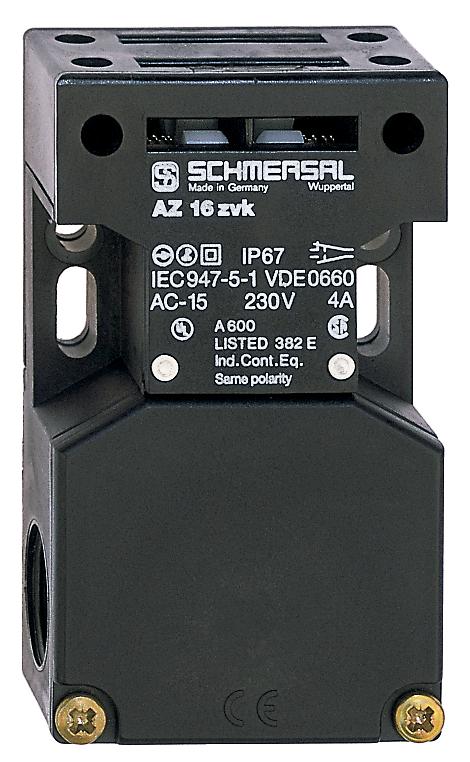

SCHMERSAL AZ 16 ZVK-1476-1SAFETY SWITCHWITH SEPARATE ACTUATOR 101128290
Zoom
SCHMERSAL AZ 16 ZVK-1476-1SAFETY SWITCHWITH SEPARATE ACTUATOR 101128290
Product Code: 101128290
Technical Specifications
Maximum Actuating Speed (m/s)
2
Maximum Fuse Rating
6 A gG D-fuse
Maximum Storage Temperature (°C)
85
Minimum Ambient Temperature (°C)
-30
Minimum Storage Temperature (°C)
-40
No. of Auxiliary Contacts
1
No. of Cable Glands
3
No. of Safety Contacts
1
Positive Break Travel (mm)
8
Rated Operational Current AC-15 (A)
Safety Contacts - 4A
Rated Operational Current DC-13 (A)
Safety Contacts - 4A
Rated Short-circuit Current (A)
1000
Sensor Height (mm)
90
Sensor Length (mm)
30
Sensor Width (mm)
52
Switching Element
NO Contact, NC Contact
Switching Frequency
4000/h
Switching Principle
Slow Action, Positive Break NC Contact
Termination
Screw Terminals
Thermal Test Current (A)
10
Brand
SCHMERSAL
Cable Entry
3 x M16 x 1.5
Contact Material
Silver
Degree of Protection
IP67
Housing Material
Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Ambient Temperature (°C)
80
Maximum Cable Cross Section (mm²)
2.5
Minimum Cable Cross Section (mm²)
0.25
Minimum Mechanical Life
1000000 Operations
Pollution Degree
3
Rated Impulse Withstand Voltage (kV)
6
Rated Insulation Voltage (V)
500
Standards and Approvals
EN IEC 60947-5-1, EN ISO 13849-1
