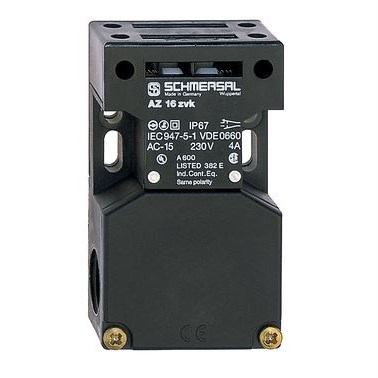

Schmersal 101167054 Safety Switch with Separate Actuator 230VAC 1NO+1NC

Product Code: 101167054

  • 230 VAC, 4 A rated for reliable performance
  • Durable with 1M mechanical cycles
  • IP67 protection for harsh environments
  • Operates from -30 to 80°C
  • Compliant with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Switch with Separate Actuator
Brand SCHMERSAL
Action Slow Action, Positive Break NC Contact
Actuating Speed 2 m/s
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000 Cycles
Mounting Type Screw
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 4000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 30 mm L x 52 mm W x 90 mm H
Standards and Approvals CCC, cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight 115 g

Description

<p>This robust industrial switch is designed for reliability and durability, making it a solid choice for various applications. Operating at a rated voltage of 230 VAC and a current of 4 A, this switch ensures efficient performance in demanding environments. With a rated frequency of up to 4000 operations per hour, it can handle frequent switching tasks with ease.</p><p>The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact, offering flexibility in control circuits. Its slow action mechanism with positive break NC contact provides additional safety by ensuring the circuit opens even if the contacts are welded together.</p><p>Built to last, this switch boasts an impressive mechanical life of 1 million cycles. The housing is made from glass fibre reinforced thermoplastic plastic, providing excellent resistance to impact and wear while maintaining a lightweight profile at just 115 grams.</p><p>With an IP67 degree of protection, this switch is dust-tight and can withstand temporary immersion in water up to one meter deep for half an hour. This makes it suitable for harsh industrial environments where moisture or dust may be present.</p><p>Designed for extreme conditions, it operates efficiently within a temperature range from -30&amp;#176;C to 80&amp;#176;C. The silver contact material ensures good conductivity and longevity under frequent use.</p><p>Installation is straightforward with its screw mounting type. The compact sensor measures 30 mm in length by 52 mm in width by 90 mm in height, allowing easy integration into existing systems without taking up excessive space.</p><p>Compliant with multiple international standards such as CCC, cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, and EN ISO 14119, you can trust that this product meets rigorous safety and performance criteria required across industries globally.</p><p>Whether it&amp;#39;s used in automation systems or safety circuits within commercial settings or heavy-duty industrial applications requiring high reliability—this switch delivers consistent performance backed by proven engineering excellence.</p>
