SCHMERSAL SAFETY SWITCH WITH SEPARATE ACTUATOR 101151298
Zoom

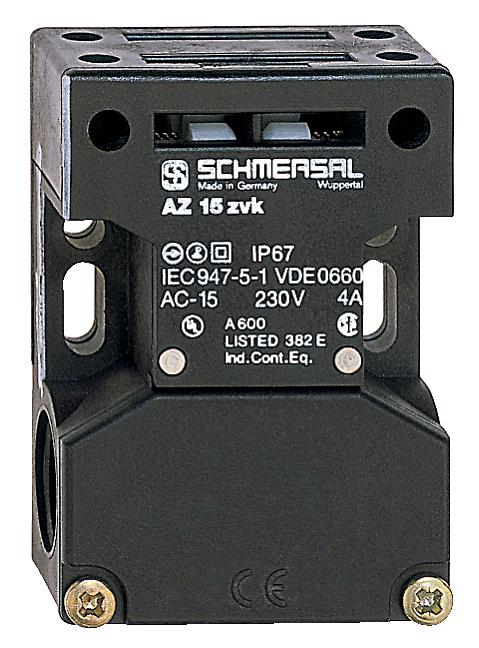

SCHMERSAL SAFETY SWITCH WITH SEPARATE ACTUATOR 101151298
Product Code: 101151298
Technical Specifications
Cable Note
All indications including the conductor ferrules.
Coding Level According to EN ISO 14119
Low
eCl@ss Number, Version 11.0
27-37-14-04
eCl@ss Number, Version 9.0
27-27-24-04
ETIM 6.0
EC002593
ETIM 7.0
EC002593
Gross Weight (g)
60
Housing Construction Form
Norm construction design
Maximum Actuating Speed (m/s)
1
Maximum Fuse Rating
10 A gG D-fuse slow blow
Minimum Actuating Speed (mm/min)
336
Minimum Ambient Temperature (°C)
-15
Minimum Positive Break Force (N)
20
Net Weight (g)
55.18
No. of Auxiliary Contacts
1
No. of Safety Contacts
2
Rated Short-circuit Current (A)
1000
Resistance to Shock (g/ms)
30 / 11
Sensor Height (mm)
25
Sensor Length (mm)
44
Switching Element
NC contact, NO contact
Switching Principle
Slow action with overlapping contacts
Utilisation Category
DC-13 | AC-15
Utilisation Category AC-15
1.5 A
Utilisation Category DC-13
0.05 A
Wire Cross-Section
0.34 mm
Working Principle
Electromechanical
Brand
SCHMERSAL
Actuator Type
Roller lever
Contact Material
Silver
Degree of Protection
IP67
EAN
4030660000000
Enclosure Material
Aluminium
Maximum Ambient Temperature (°C)
70
Maximum Cable Cross Section (mm²)
2.5
Minimum Cable Cross Section (mm²)
1
Minimum Mechanical Life
1000000 Operations
Overvoltage Category
3
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage (V)
500
Standards
EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)
-25 to 80
Terminal Type
Connector
