Products

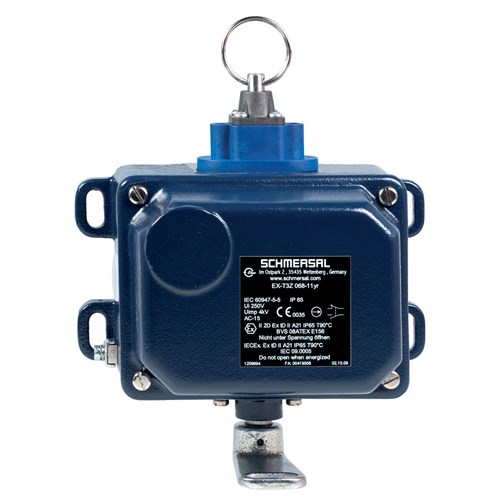

Schmersal 101218074 EX Pull-Wire Emergency Stop Switch NO-NC

Product Code: 101218074

  • Operates at 230 VAC, 6 A
  • NO-NC contact configuration
  • Durable grey cast iron housing
  • IP66 protection rating
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type EX Pull-Wire Emergency Stop Switch
Brand SCHMERSAL
Actuating Element Roller Lever N300
Contact Configuration NO-NC
Contact Material Silver
Degree of Protection IP66
Housing Material Grey Cast Iron, Painted
Mechanical Life 50000 Cycles
Operational Temperature -20 deg C
Rated Current 6 A
Rated Insulation Voltage 250 V
Rated Voltage 230 VAC
Standards and Approvals EN IEC 60079-0, EN IEC 60947-5-1, EN ISO 13849-1

Description

<p>When selecting a reliable and efficient switch for industrial or commercial applications, it&amp;#39;s crucial to focus on performance, durability, and safety standards. This particular switch is designed with these factors in mind, making it a suitable choice for Australian technical audiences looking for robust solutions.</p><p>Operating at a rated voltage of 230 VAC and supporting a current of up to 6 A, this switch is well-suited for various electrical systems. The contact configuration includes both Normally Open (NO) and Normally Closed (NC) options, providing flexibility in control circuits. With a mechanical life of 50,000 cycles, users can expect long-term reliability and minimal maintenance concerns.</p><p>The housing material is grey cast iron with a painted finish that not only enhances its aesthetic appeal but also provides added protection against environmental factors. Its IP66 rating ensures the switch is dust-tight and protected against powerful water jets—ideal for harsh industrial environments where exposure to dust or moisture is common.</p><p>Designed to operate efficiently within an operational temperature range down to -20&amp;#176;C, this switch remains functional in colder climates without compromising performance. This makes it versatile enough for use in diverse settings across Australia where temperature variations are prevalent.</p><p>The product adheres to several key standards: EN IEC 60079-0 ensures compliance with equipment used in explosive atmospheres; EN IEC 60947-5-1 covers low-voltage switching devices; and EN ISO 13849-1 relates to the safety of machinery control systems. These approvals underscore its commitment to safety and quality assurance.</p><p>With a rated insulation voltage of 250 V, the switch provides adequate protection against electrical shock hazards—a critical consideration when ensuring personnel safety in any installation.</p><p>In summary, this switch offers dependable functionality combined with robust construction features tailored for demanding environments. Its adherence to international standards further solidifies its position as a trustworthy component within your electrical setup—whether you&amp;#39;re upgrading existing infrastructure or embarking on new projects.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
