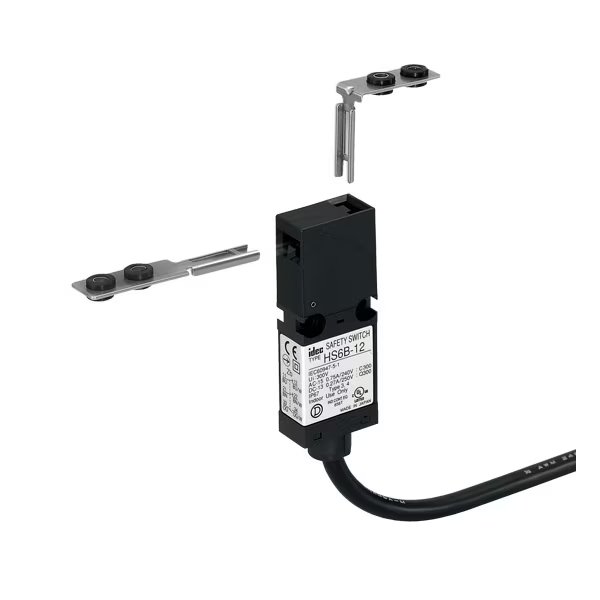

IDEC SAFETY INTERLOCK 2NC 3m CABLE SAFETY_SWITCH HS6B-02B03

Product Code: HS6B-02B03

The IDEC HS6B-02B03 is a robust safety interlock switch designed to enhance machine safety. It features an integral molded 3m cable for quick installation and watertight sealing, ensuring durability even in wet conditions. The Direct Opening Action mechanism guarantees disconnection of contacts under all conditions, compliant with IEC/EN60947-5-1 standards. This switch is also designed in accordance with ISO14119 and EN1088 for key compatibility. With a high B10d value of 2 million, it promises reliable long-term performance for safety-critical applications.

Technical Specifications

Brand IDEC
Cable Length (m) 3
Degree of Protection IP67
Dimensions (mm) 30W x 15H x 78D
Housing Colour Black
Minimum Electrical Life 100000
Minimum Mechanical Life 1000000
No. of Normally-closed Contacts 2
Operational Temperature Range (°C) -25 to 70
Pollution Degree 3
Rated Insulation Voltage (V) 300
Rated Thermal Current - Ith (A) 2.5
Weight (g) 270
