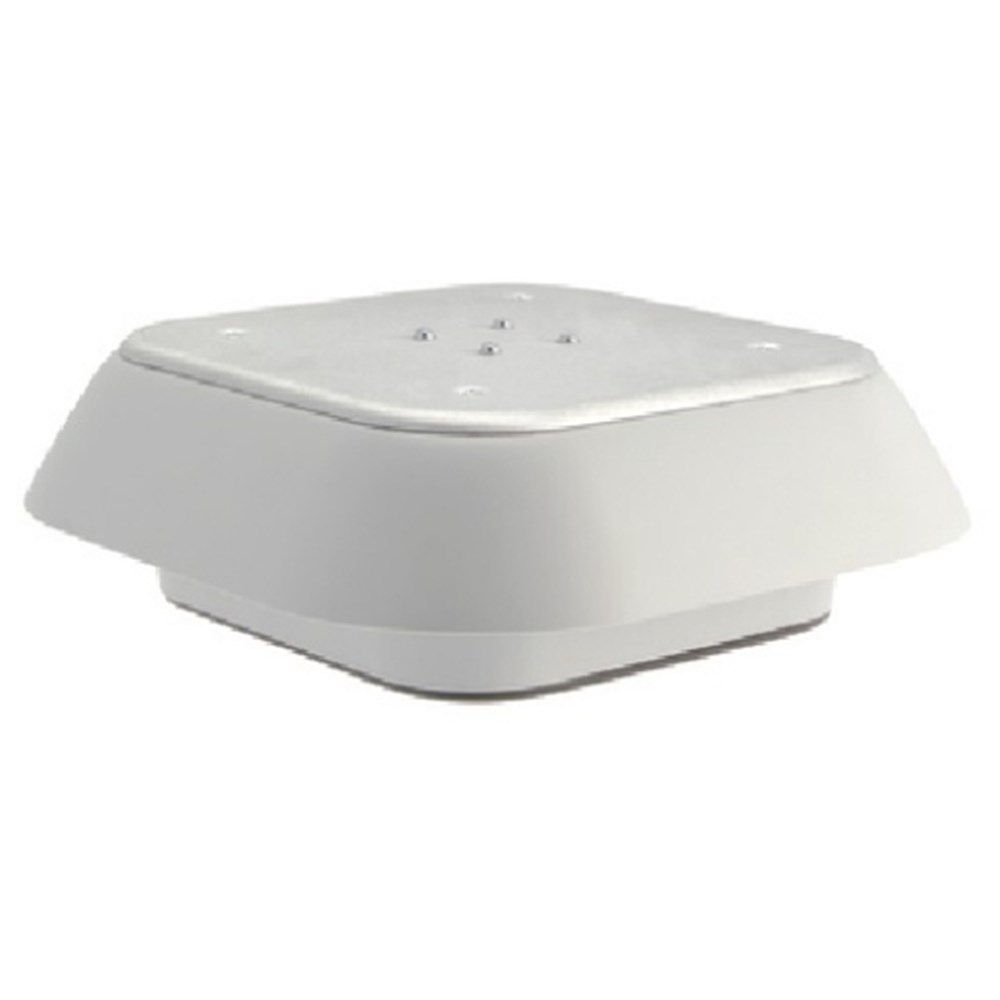

Fandis TP19U230B54 Roof Exhaust Unit 440cu-m/h 475cu-m/h 230VAC 24 to 250VDC IP54 324W 324H RAL7035 Light Grey

Product Code: TP19U230B54

  • Efficient airflow: 440-475 cu-m/h
  • Dual power options: 68W or 82W
  • Flexible voltage range: 230VAC, 24-250VDC
  • IP54 protection for durability
  • Compact design: 324x324x94 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Roof Exhaust Unit
Brand FANDIS
Air Flow 440 cu-m/h, 475 cu-m/h
Colour Light Grey RAL 7035
Degree of Protection IP54
Depth 94 mm
Height 324 mm
Noise Level 67.9 dBA, 71 dBA
Operational Temperature -10 to 60 deg C
Rated Current 0.3 A, 0.36 A
Rated Frequency 50/60 Hz
Rated Power 68 W, 82 W
Rated Voltage 230 VAC, 24-250 VDC
Width 324 mm

Description

<p>When it comes to ensuring optimal ventilation in industrial and commercial settings, selecting a reliable roof exhaust unit is crucial. This particular Roof Exhaust Unit offers an ideal balance of performance and efficiency, making it a worthy consideration for your ventilation needs.</p><p>Designed with flexibility in mind, this unit provides two air flow options: 440 cu-m/h and 475 cu-m/h. These variations allow you to select the most suitable airflow rate for your specific application, whether you&amp;#39;re managing a small workshop or a larger industrial facility.</p><p>Power consumption is kept efficient at either 68 W or 82 W, depending on the airflow selected. This ensures that while the unit delivers robust performance, it remains energy-conscious—an important factor when considering operational costs over time.</p><p>Compatibility with various power supply systems is another strong point of this unit. It operates efficiently across a wide voltage range from 230 VAC to between 24-250 VDC. Coupled with its ability to function at both 50 and 60 Hz frequencies, this versatility makes integration into existing systems straightforward without requiring extensive modifications.</p><p>The degree of protection offered by this unit is IP54, which means it’s well-protected against dust ingress and splashing water from any direction—ideal for challenging environments where reliability is non-negotiable.</p><p>Physically compact yet sturdy, the dimensions are set at a width and height of 324 mm each with a depth of just 94 mm. Its light grey RAL 7035 finish not only provides an unobtrusive appearance but also blends seamlessly into varied architectural designs.</p><p>Noise levels are maintained within reasonable limits; operating at either 67.9 dBA or slightly higher at 71 dBA depending on the setting chosen. This ensures minimal disruption during operation—a critical factor in maintaining comfortable workspaces.</p><p>Temperature resilience further enhances its appeal; capable of operating efficiently across temperatures ranging from -10&amp;#176;C to +60&amp;#176;C, this unit can withstand diverse climatic conditions typical across Australia without compromising performance.</p><p>In summary, this Roof Exhaust Unit stands out as a practical choice for those seeking dependable ventilation solutions tailored for industrial applications—combining adaptability with solid engineering principles to meet rigorous demands effectively.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
