Product Code: RF1V-3A3B-D24

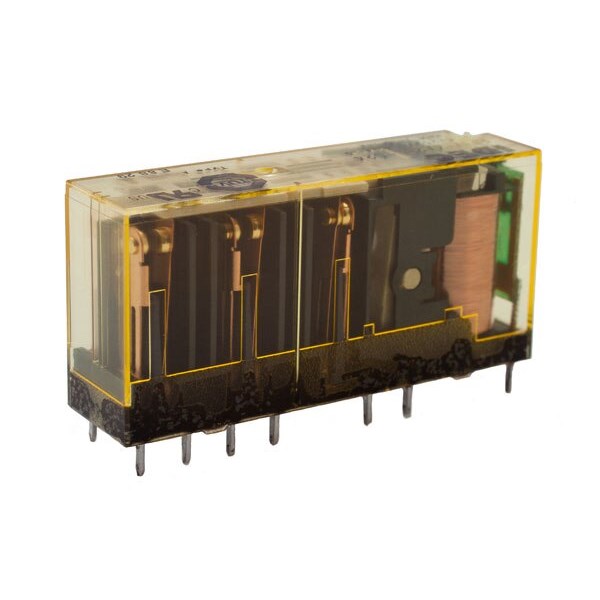

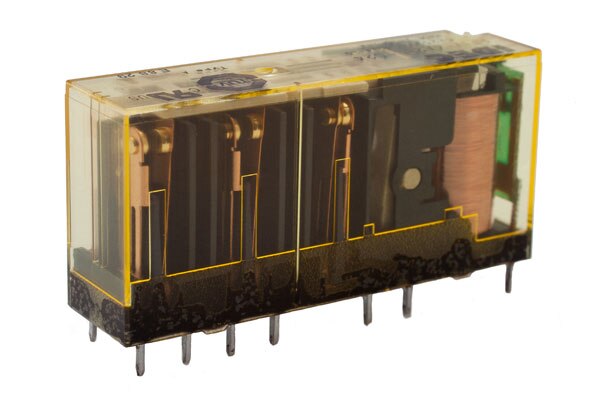

The IDEC RF1V-3A3B-D24 is a relay designed for safety-critical applications, featuring a force-guided contact mechanism that complies with EN50205 Type A TÜV standards. This relay operates with a 24V DC coil and offers three Normally Open (NO) and three Normally Closed (NC) contacts. It is engineered without an LED indicator for simplicity in circuits where such indication is unnecessary. The relay benefits from a finger-safe DIN rail mount socket and PC board mount socket, ensuring secure installation and enhanced safety during operation.

Brand	IDEC
Contact Resistance (mO)	100
Maximum Switching Capacity AC (V)	250
Maximum Switching Capacity AC (VA)	1500
Maximum Switching Capacity DC (V)	30
Maximum Switching Capacity DC (W)	180
Resistance to Shock (m/s²)	200
Resistance to Vibrations	10 to 55Hz
Coil Voltage DC (V)	24
Dimensions (mm)	50W x 24H x 13D
Insulation Resistance (MO)	1000
Maximum Switching Current (A)	6
Minimum Mechanical Life	10,000,000
No. of Normally-closed Contacts	3
No. of Normally-open Contacts	3
No. of Poles	6
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-40 to 85
Power Consumption (W)	0.5
Rated Current (mA)	20.8
Weight (g)	23

Relays

IDEC RF1V RELAY 3NO - 3NC DC 24V RF1V-3A3B-D24
