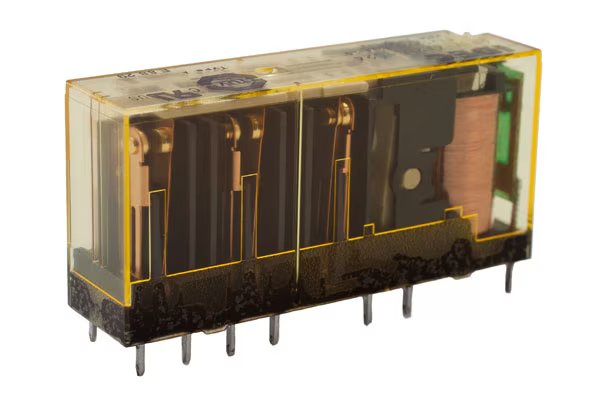

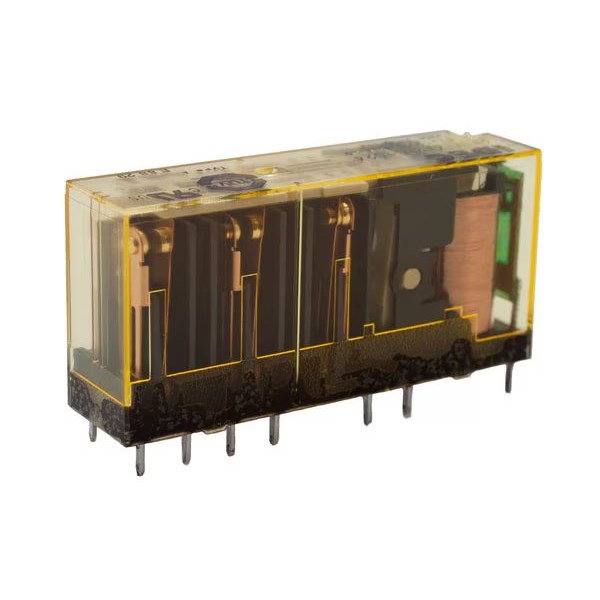

IDEC RF1V RELAY 2 NO-2 NC DC 24V RF1V-2A2B-D24

Product Code: RF1V-2A2B-D24

The IDEC RF1V-2A2B-D24 is a force-guided relay designed for safety-critical applications. It features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, operating on a 24V DC supply. This relay is EN50205 Type A TÜV approved, ensuring reliable performance in demanding environments. Its design includes a finger-safe DIN rail mount socket and PC board mount socket for versatile installation options.

Technical Specifications

Operating Humidity 5 to 85%
Resistance to Shock (m/s²) 200
Brand IDEC
Operational Temperature Range (°C) -40 to 85
Coil Voltage DC (V) 24
Contact Resistance (mO) 100
Insulation Resistance (MO) 1000
Maximum Switching Capacity AC (V) 250
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity DC (W) 180
Maximum Switching Current (A) 6
Minimum Mechanical Life 10,000,000
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 2
No. of Poles 4
Power Consumption (W) 0.36
Rated Current (mA) 15
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 40W x 24H x 13D
Weight (g) 20
