Product Code: RY2KS-UCDC24V

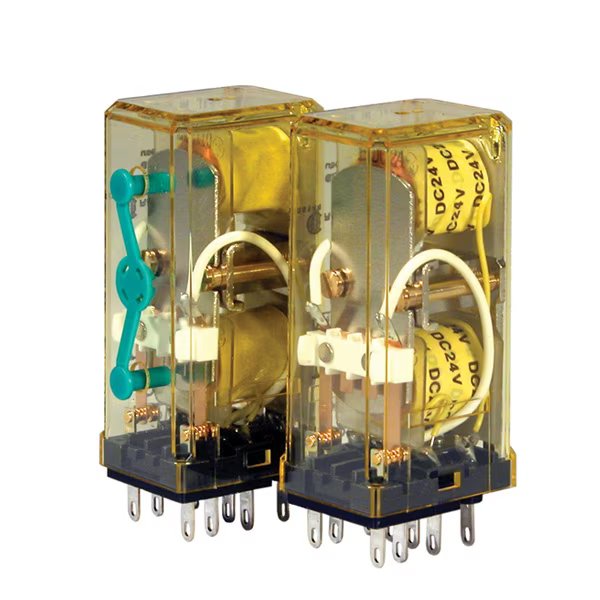

The IDEC RY2KS-UCDC24V is a DPDT plug-in relay designed for robust performance in demanding applications. It features a standard ice-cube base and solder-lug (14-pin) termination for secure connections. Built to withstand high vibration and shock, this relay also boasts excellent self-holding capabilities. An optional dual manual check button facilitates convenient circuit testing, while the dual coil permanent magnet ensures reliable operation. Ideal for use in automation and control systems requiring a 3A 24V DC relay.

Brand	IDEC
Contact Resistance (mO)	50
Resistance to Shock (m/s²)	200
Resistance to Vibrations	5 to 55Hz
Coil Voltage DC (V)	24
Contact Material	Gold Plated Silver
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000
Minimum Mechanical Life	5,000,000
Model	With Check Button
Operational Temperature Range (°C)	-5 to 40
Power Consumption (W)	1.2
Weight (g)	67

Relays

IDEC REPLAY PLUG-IN DPDT 3A 24V DC RELAY RY2KS-UCDC24V

Product Code: RY2KS-UCDC24V

Technical Specifications
