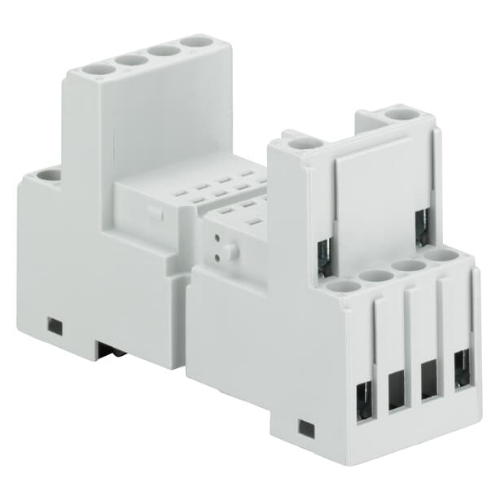

ABB RELAY SOCKET CR-M 2C/O CRM2SS

Product Code: CRM2SS

The CR-M2SS socket is from the CR-M (miniature) relay range. The standard socket is suitable for CR-M relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.

Technical Specifications

Rated Operational Current AC-12 230V (A) 7
Brand ABB
Ambient Temperature Range (°C) -40 to 70
Dimensions (mm) 27W x 42.5H x 82D
Function Socket for Miniature Relays
Rated Insulation Voltage (V) 3
Rated Operational Voltage (V) 250
Reference No. CR-M2SS
Standards and Approvals IEC/EN 63000, IEC/EN 61984, UL 508
Storage Temperature Range (°C) -40 to 70
Terminal Type Screw
Weight (kg) 0.066
