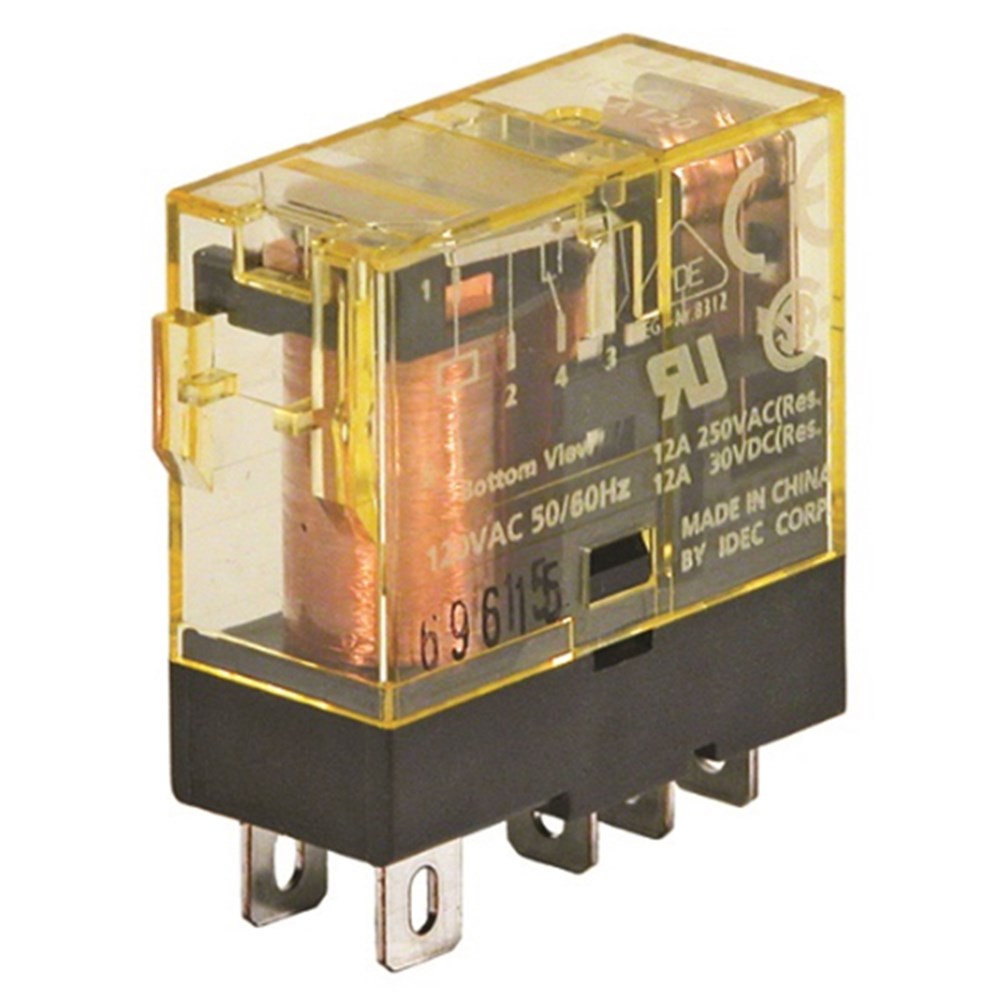

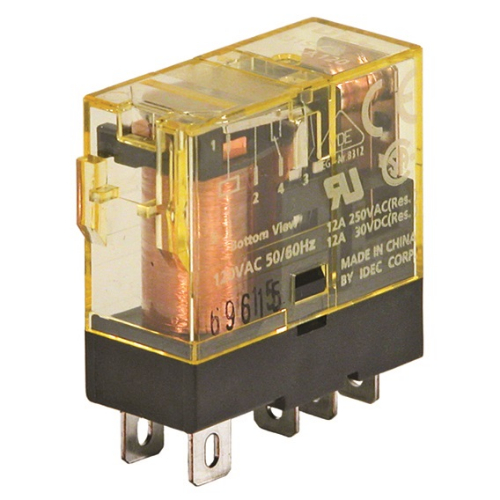

IDEC RELAY SLIM LINE SPDT 24VAC 12A RJ1S-CL-A24

Product Code: RJ1S-CL-A24

The IDEC RJ1S-CL-A24 is a Slim Line Power Relay designed for robust performance with a SPDT configuration and a 24VAC coil voltage. It offers a substantial switching capacity of up to 12A within its compact 12.7mm wide housing. This single-pole relay features a non-polarized LED indicator and is engineered for both excellent electrical and mechanical longevity, making it suitable for demanding engineering applications.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 24
Contact Configuration SPDT
Contact Material Silver-nickel alloy
Degree of Protection IP40
Dielectrical Strength (kV) Between Contact and Coil: 5, Between Contacts of the Same Pole: 1
No. of Poles 1P
Operational Temperature Range (°C) -40 to +70
Rated Current (A) 12
Relay Type RJ1S 1PDT Relay with LED indicator
Series RJ
Suitable Base SJ1S-07LW
Terminal Type Plug-in
Weight (g) 19
