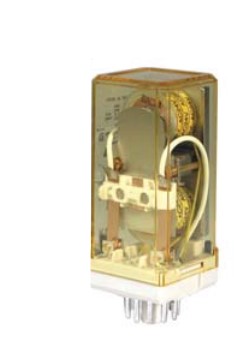

IDEC RR2KP-UAC24V LATCH RELAY SELF-MAINTAINED DPDT 10A 24VAC

Product Code: RR2KP-UAC24V

The IDEC RR2KP-UAC24V is a latch relay designed for robust performance in memory and flip-flop circuit applications. This self-maintained DPDT relay operates at 10A with a 24VAC control voltage. It features a self-holding function using permanent magnets, ensuring contacts remain in position until the opposite coil is energized. Its reliable latching mechanism makes it suitable for circuits that require stable and persistent states.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 24
Contact Configuration DPDT
Contact Material Silver
Insulation Resistance (MO) 100
No. of Poles 2P
Operational Temperature Range (°C) -5 to +40
Rated Current (A) 10
Relay Type RR2KP DPDT Relay
Series RR
Terminal Type Pin
