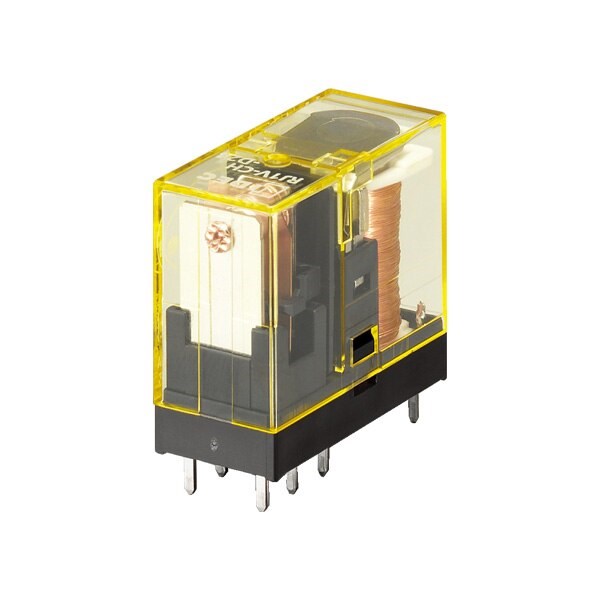

IDEC RELAY PCB SPDT 16A 240V AC PCB_RELAY RJ1V-CH-A240

Product Code: RJ1V-CH-A240

The IDEC RJ1V-CH-A240 is a robust PCB power relay designed for high-capacity switching up to 16A at 240V AC. Its SPDT configuration provides versatile connection options. This compact relay is environmentally conscious, free from hazardous substances such as lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. It meets industry standards with UL recognition, CSA certification, and EN compliance, ensuring reliability and safety in various applications.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 15ms (Max)
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage AC (V) 240
Contact Material Silver-Nickel Alloy
Contacts SPDT
Degree of Protection IP40
Dimensions (mm) 29W x 25.5H x 12.7D
Minimum Electrical Life 200,000
Minimum Mechanical Life 30,000,000
Model High Capacity
No. of Poles 1
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -40 to 70
Weight (g) 17
