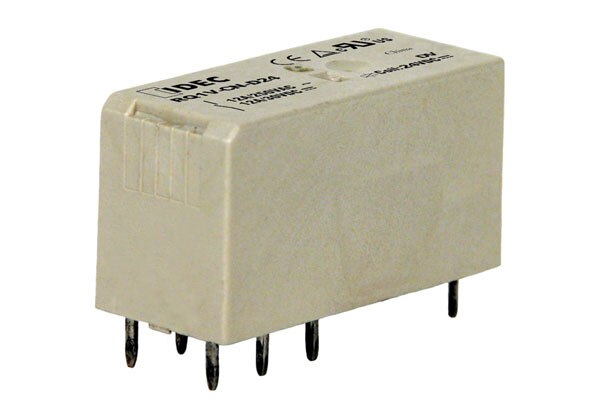

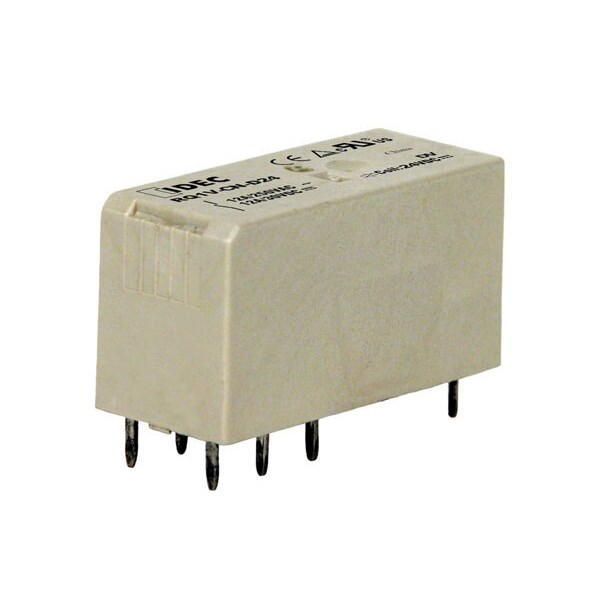

IDEC RELAY PCB SPDT 16A 12V DC RQ1V-CH-D12

Product Code: RQ1V-CH-D12

The IDEC RQ1V-CH-D12 is a compact, high-capacity relay designed for PCB applications. It features a Single Pole Double Throw (SPDT) configuration with a 16A contact rating, suitable for robust operations. This relay is compatible with LED/Diode plug-in modules and can be easily mounted on a DIN rail socket, offering flexibility in installation. Its design emphasizes both functionality and space efficiency, making it an ideal choice for streamlined electrical layouts.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 100
Operating Time 12ms
Resistance to Vibrations 10 to 55Hz
Coil Voltage DC (V) 12
Contact Material Silver-Nickel Alloy
Contacts SPDT
Dimensions (mm) 12.7W x 29H x 15D
Minimum Electrical Life 100,000
Minimum Mechanical Life 10,000,000
Model High Capacity
No. of Poles 1
Operating Humidity 45 to 85%
Operational Temperature Range (°C) -40 to 85
Weight (g) 15
